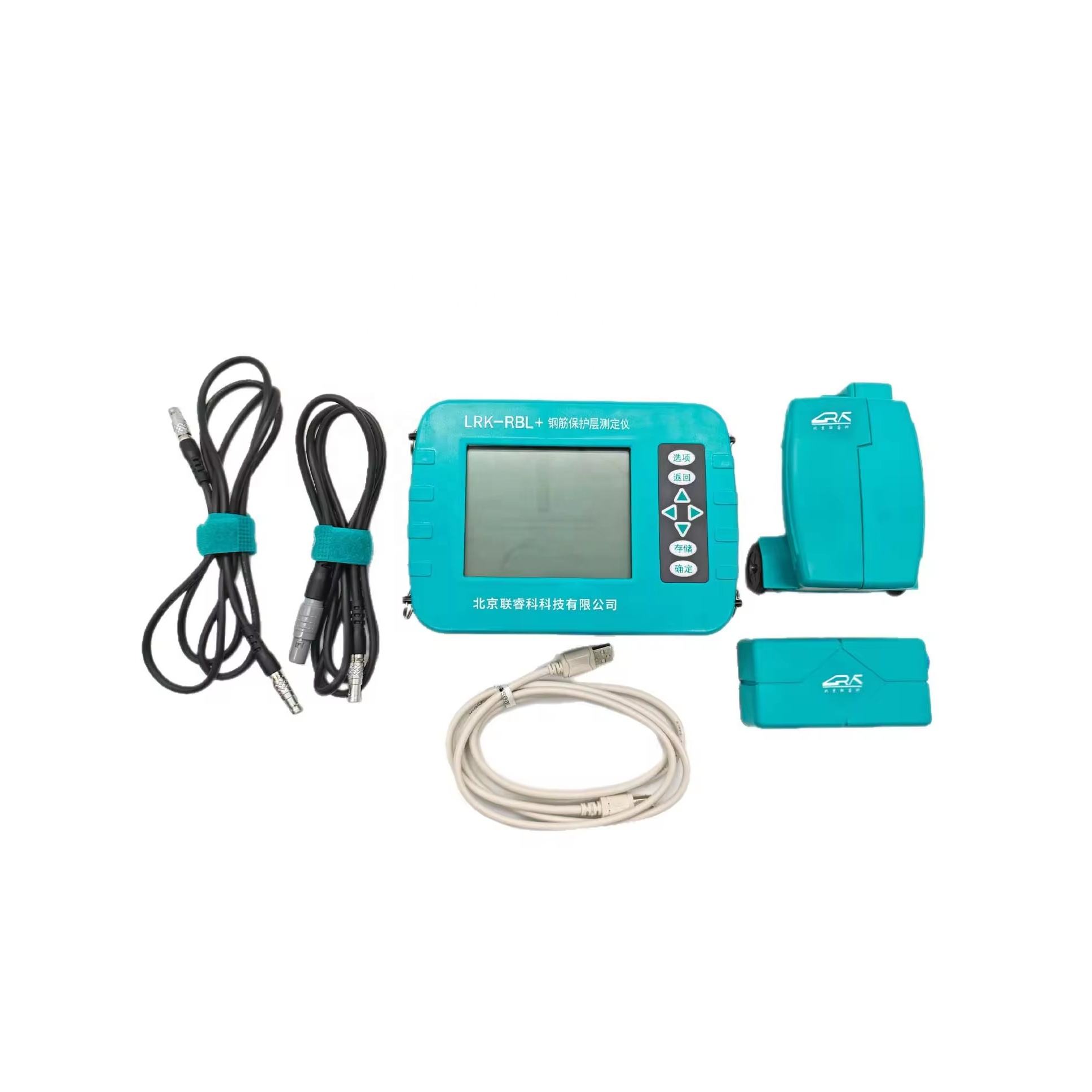

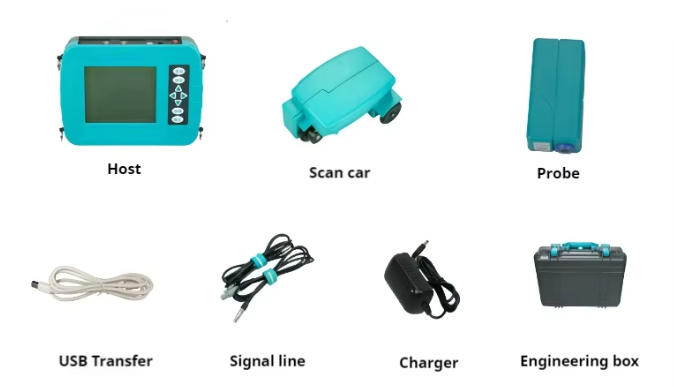

Usage Overview
The steel reinforcement protection layer tester can be used to detect the construction quality of existing reinforced concrete projects and new reinforced concrete structures: determine the position and layout of the steel reinforcement, and detect the thickness of the concrete protection layer based on the known diameter. It has the function of scanning the layout of the steel reinforcement. In addition, the position of magnetic and conductive materials in non-magnetic and non-conductive media can also be detected, such as cables and plumbing pipes inside walls. This instrument is an intelligent non-destructive testing equipment with automatic detection, data storage, and output functions.
Major function
1. Detect the thickness of the protective layer of the steel reinforcement under a known diameter;
2. Estimate the diameter of steel bars and the thickness of the protective layer under an unknown diameter;
3. Detecting the position and direction of steel bars in concrete structures;

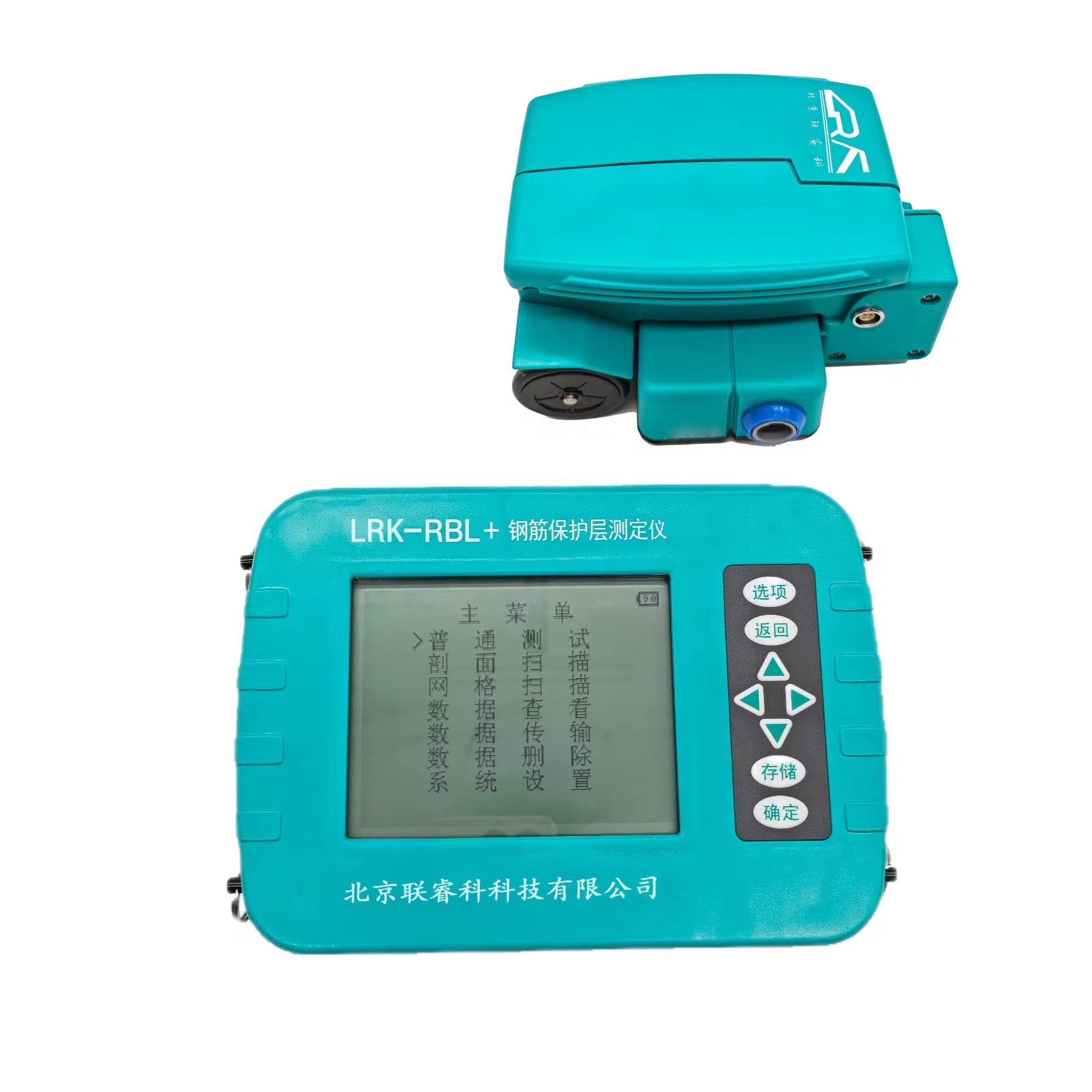

4. Detect the thickness of the protective layer of the steel reinforcement under a certain measuring surface (or line) and display a grid (or section) image (must use a scanning car equipped with the instrument);
5. Probe self calibration function;
6. The storage, viewing, and deletion functions of detection data;
7. Data transmission function.
Product features
1. The thickness of the protective layer and the signal image of the steel reinforcement are displayed in real-time, and the minimum value is automatically locked
2. The dual range working mode effectively ensures detection accuracy and maximum detection depth
3. Automatic storage of detection data, providing real-time statistical analysis results on site for easy guidance of construction operations,
4. Professional data analysis software makes it easy for you to complete your later data processing and report production work

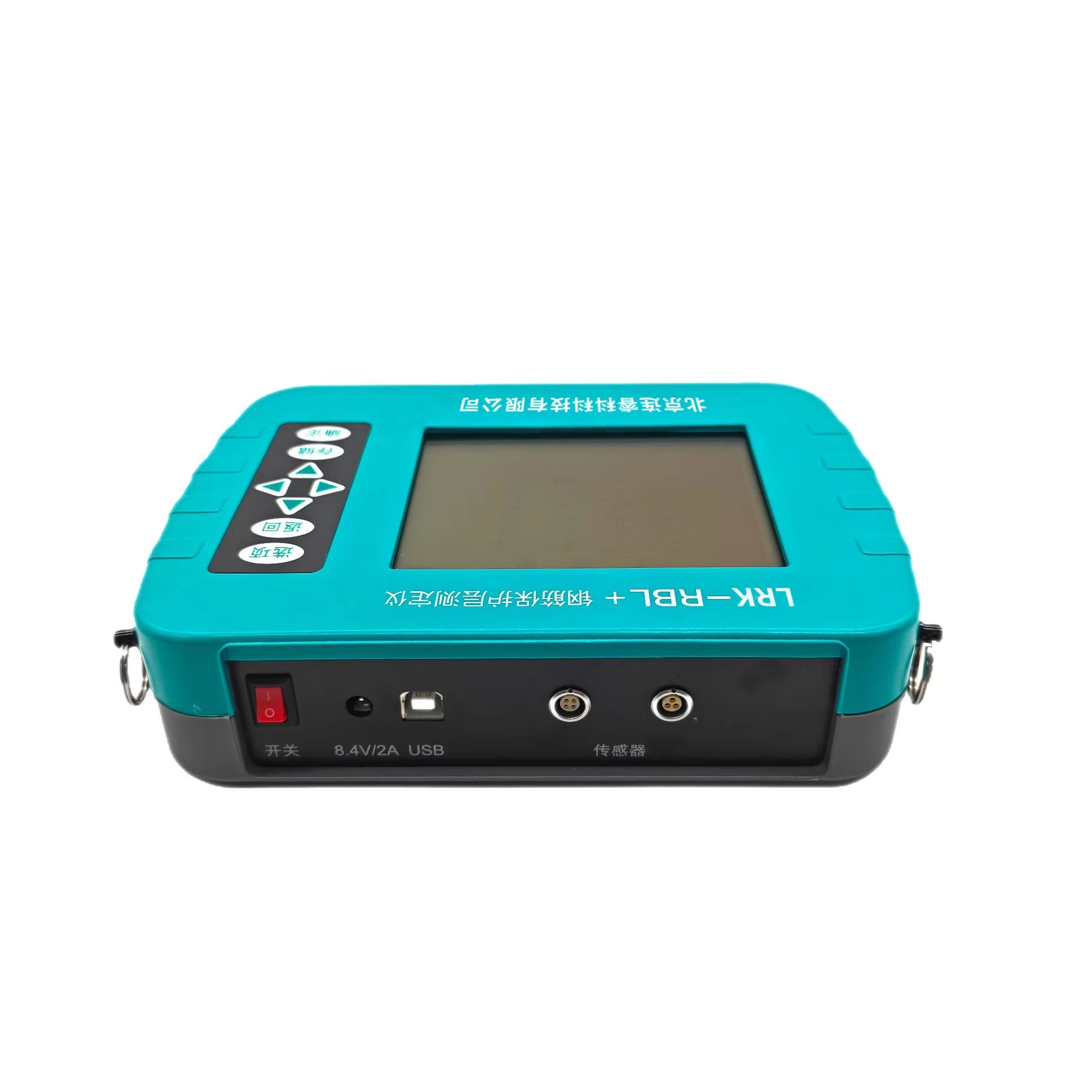

| Name | Project | |
| Setting range of steel bar diameter | Φ6mm~Φ50mm | |
| Detection scope | Small range | 6-90mm |
| Large Range | 6-200mm | |
| Small Range | Large Range | |
| Maximum allowable error in protective layer thickness | ||
| ±1（mm） | 6 - 59mm | 6 - 79mm |
| ±2（mm） | 60 - 69mm | 80 - 119mm |
| ±4（mm） | 70 - 90mm | 120 - 200mm |
| Applicable range of diameter estimation | Φ6mm~Φ32mm | |
| Maximum error in diameter estimation | ±1 specifications | |
| Profile grid | Profile grid | |
| Storage quantity | 2000 components * 1000 measuring points | |
| Data transmission interface | USB | |
| Power supply method | lithium battery | |
| Host parameters |
Screen size: 5 inches Resolution: 320X240 Volume: 195X140X45mm Weight: 0.8kg |
|
| Packaging specifications |
Material: Engineering plastic Volume: 425X142X345mm Weight: 4.2kg |
|
