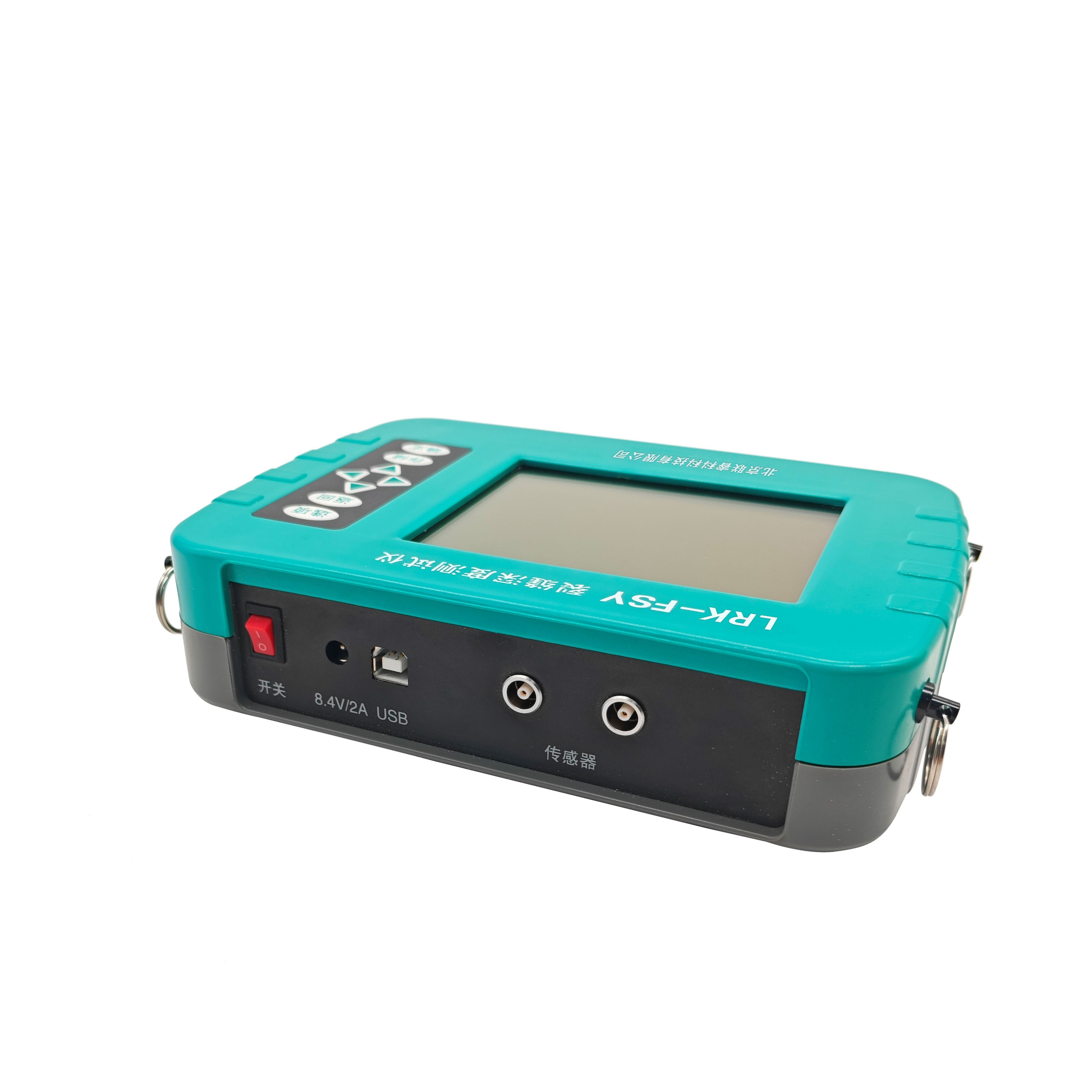

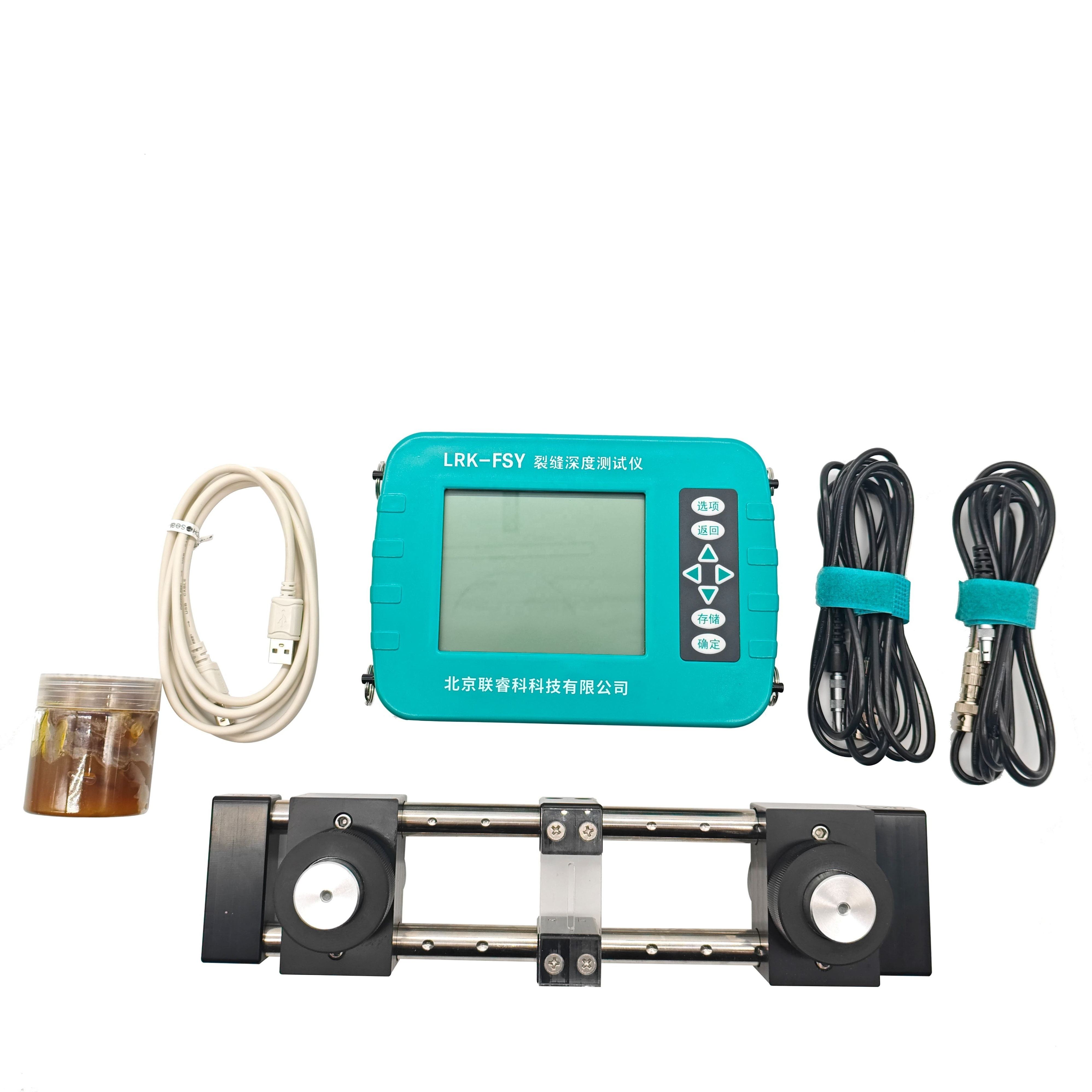

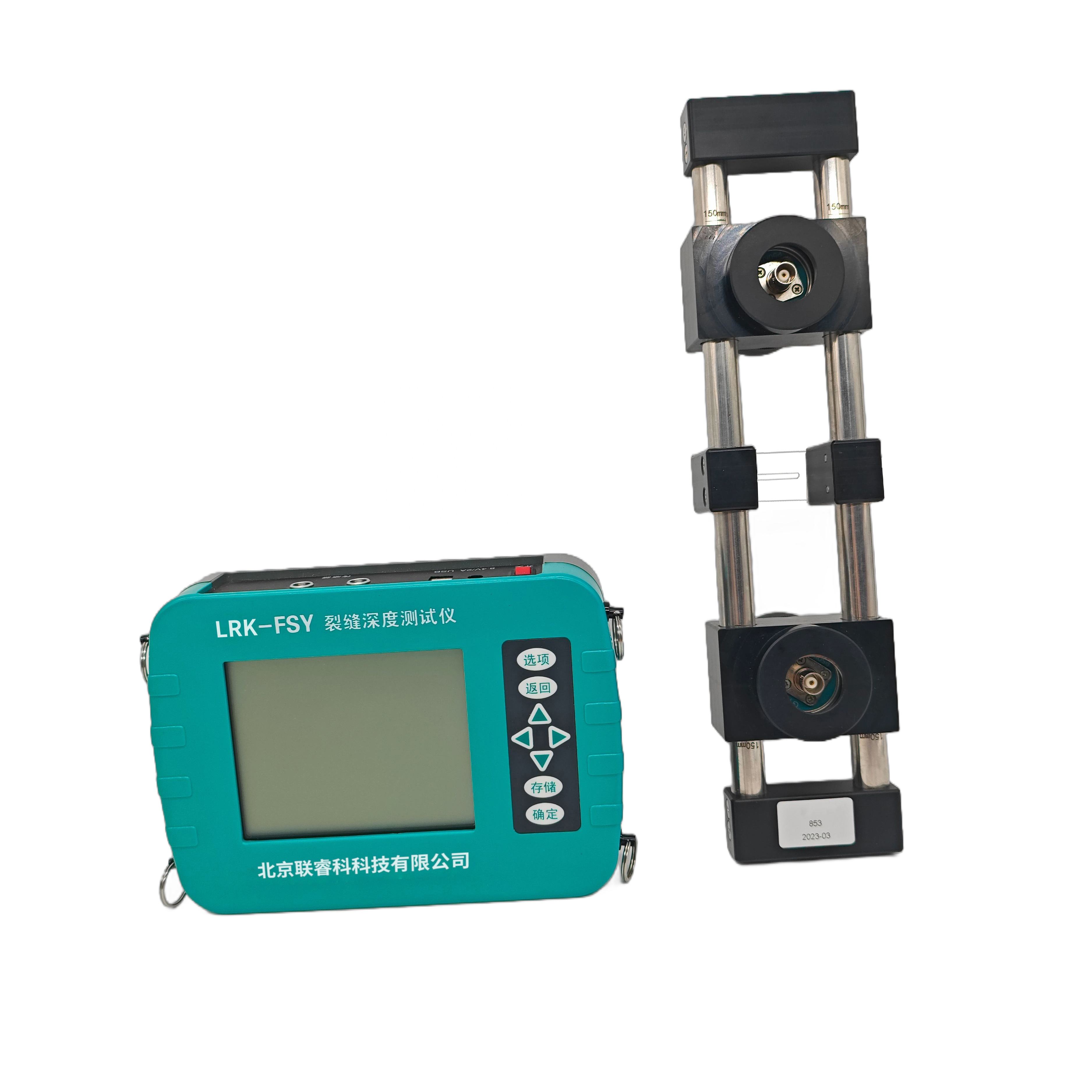

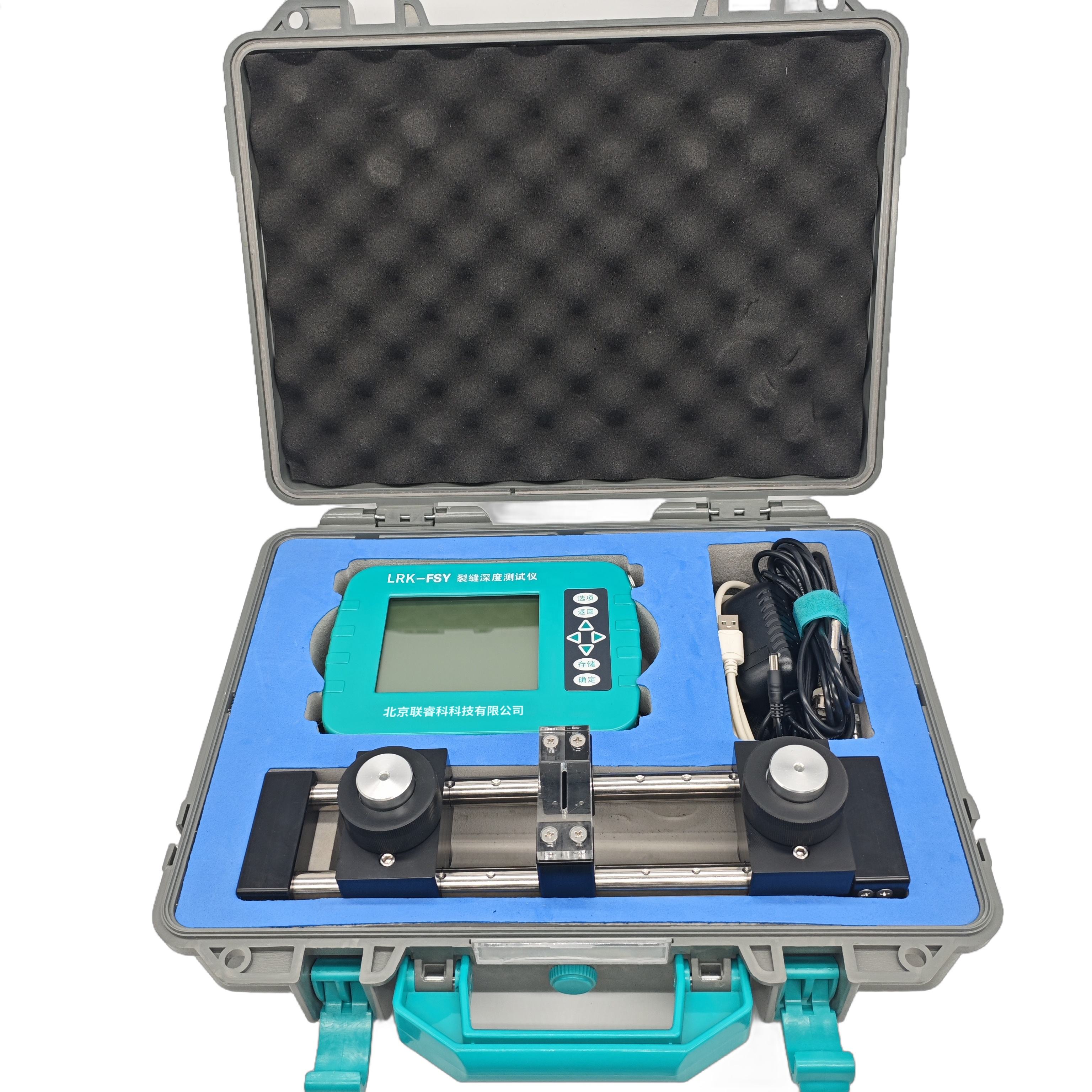

LRK-FSY Crack Depth Tester, Crack Depth Measuring Instrument
Usage Overview
The LRK-FSY crack depth tester measures the crack depth on the surface of concrete based on the principle of sound wave diffraction
Technical characteristics
On site testing is simple and fast, without the need for manual judgment of sound reading parameters, directly displaying crack depth

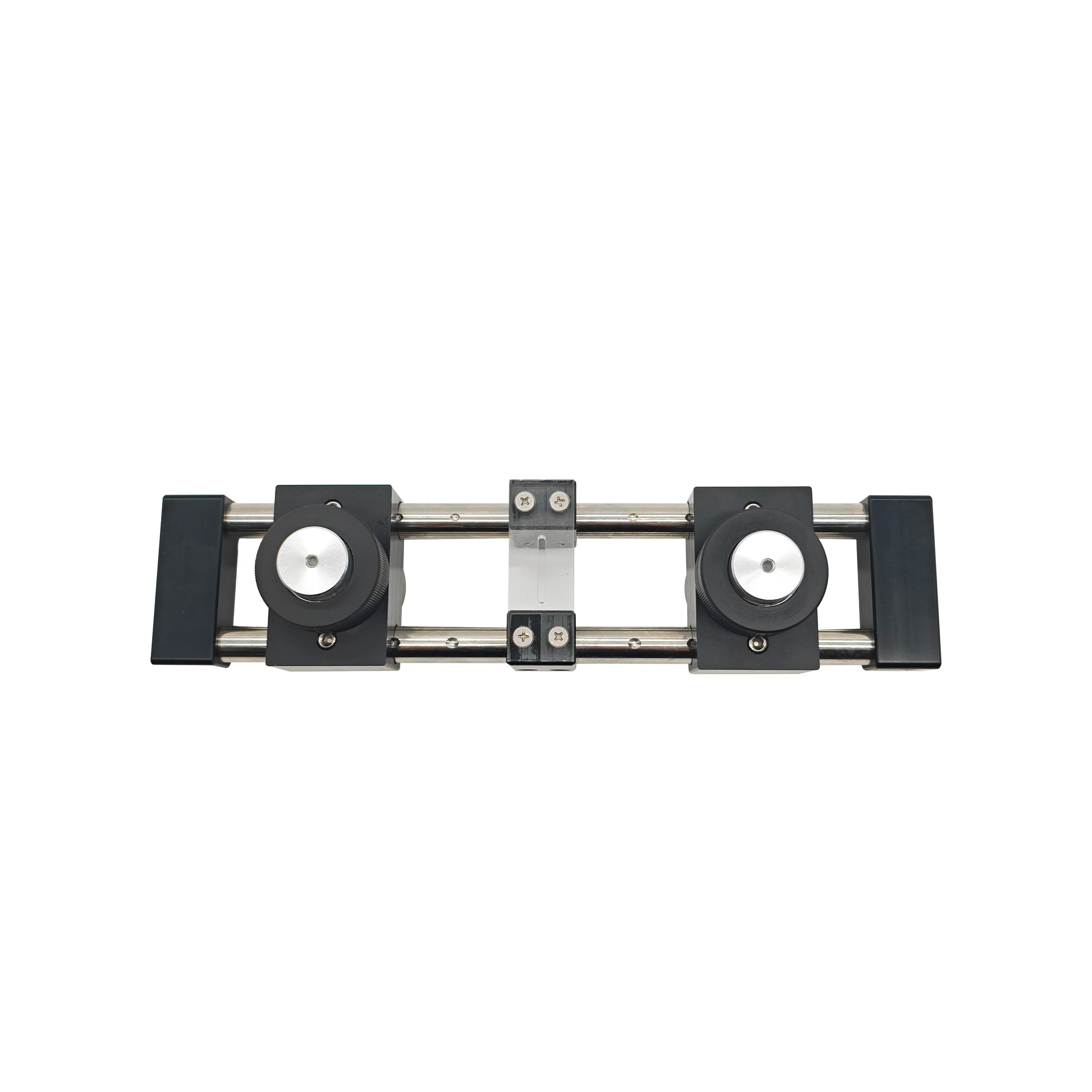

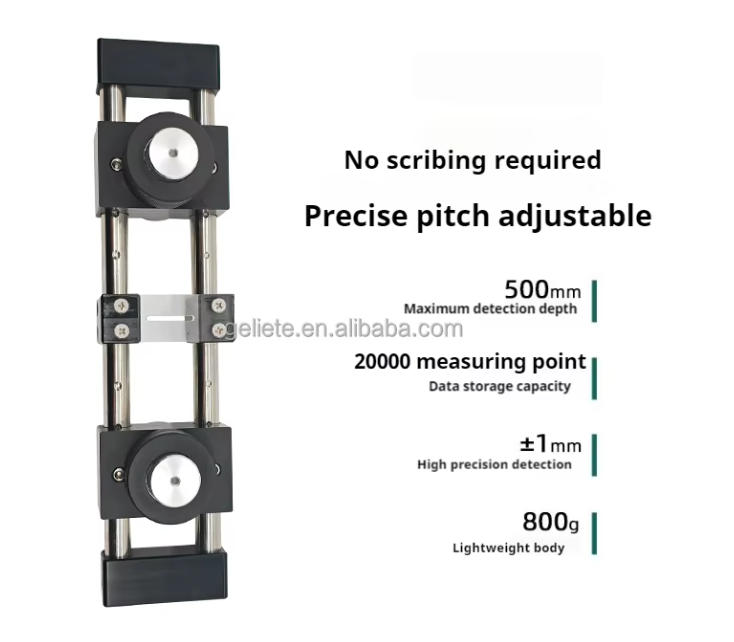

The use of brackets for testing does not require marking, and precise spacing greatly improves testing efficiency
High testing accuracy, with a maximum error of no more than 5mm or actual cracks of 2%~10%
| Name | Technical indicators |
|---|---|
| Measurement range of crack depth | 5-500mm |
| Testing error | ≤ 5mm or 2%~10% of actual depth |
| Testing method | Standard measurement & Quick measurement |
| Data storage capacity | 20000 groups |
| Data transmission interface | USB |
| Power supply | Large capacity lithium batteries |
| Screen size | 5 inches |
| Resolving power | 160*128 |
