Usage Overview

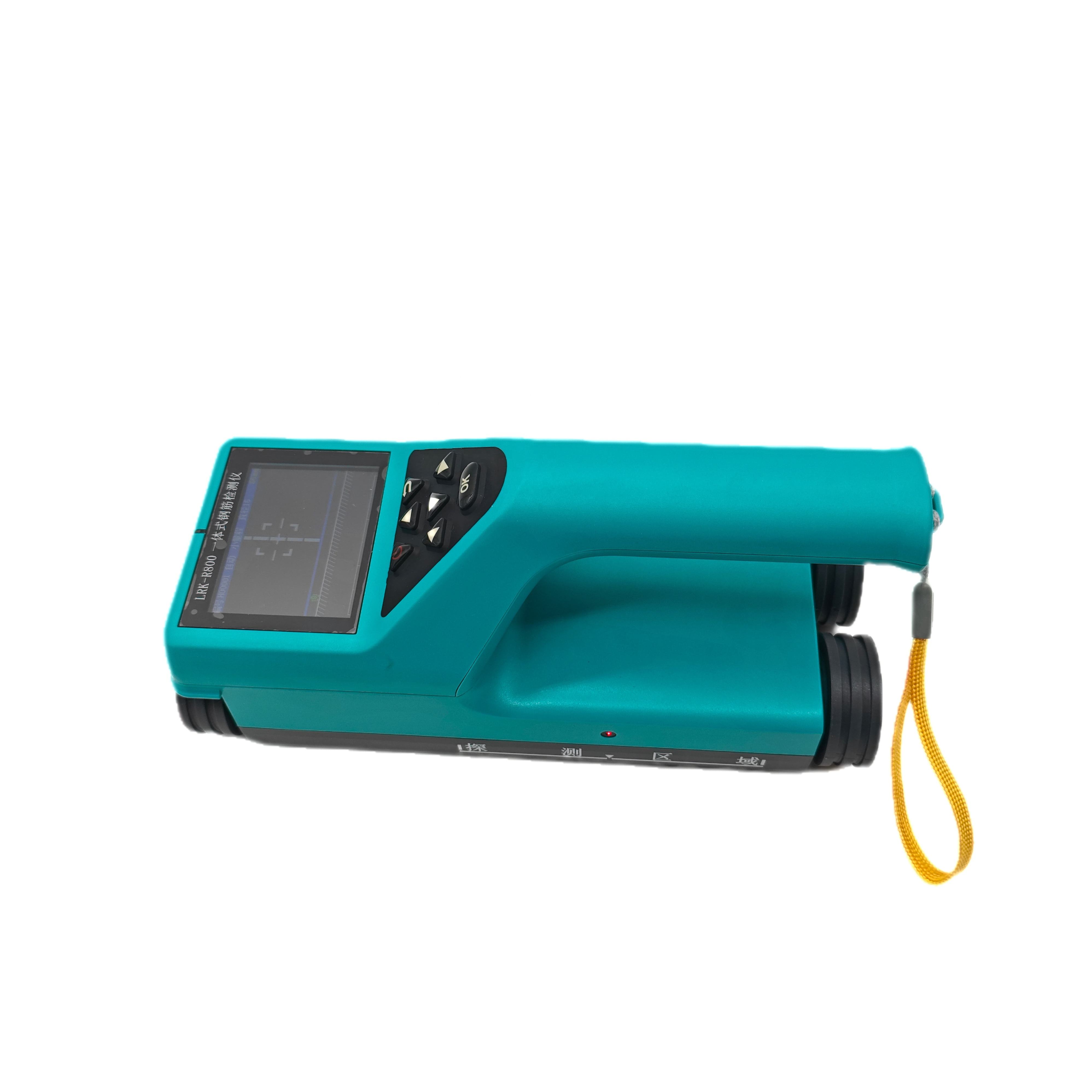

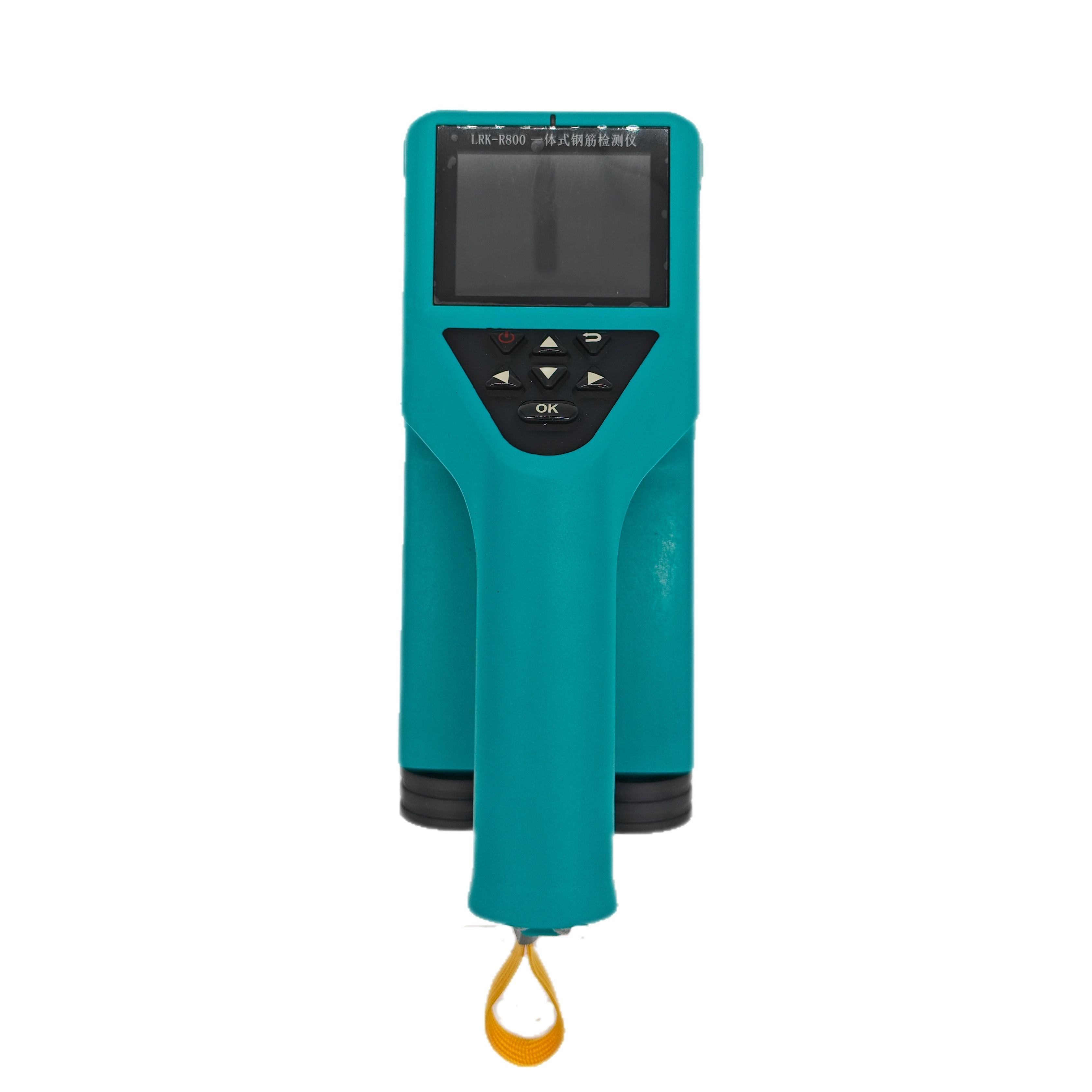

The comprehensive steel bar detector is a portable non-destructive testing instrument that can be used to detect the construction quality of reinforced concrete structures. It can measure the position of steel bars on the surface of concrete, detect the thickness of the protective layer of steel bars, and measure the diameter of steel bars; In addition, the position of magnetic and conductive materials inside concrete structures can also be detected, such as cables and plumbing pipes inside walls. Pre construction inspection can effectively prevent damage to these facilities during the construction process and reduce the occurrence of accidents.
Technical characteristics
Newly upgraded ultra large range, with a maximum testing thickness of 210mm;

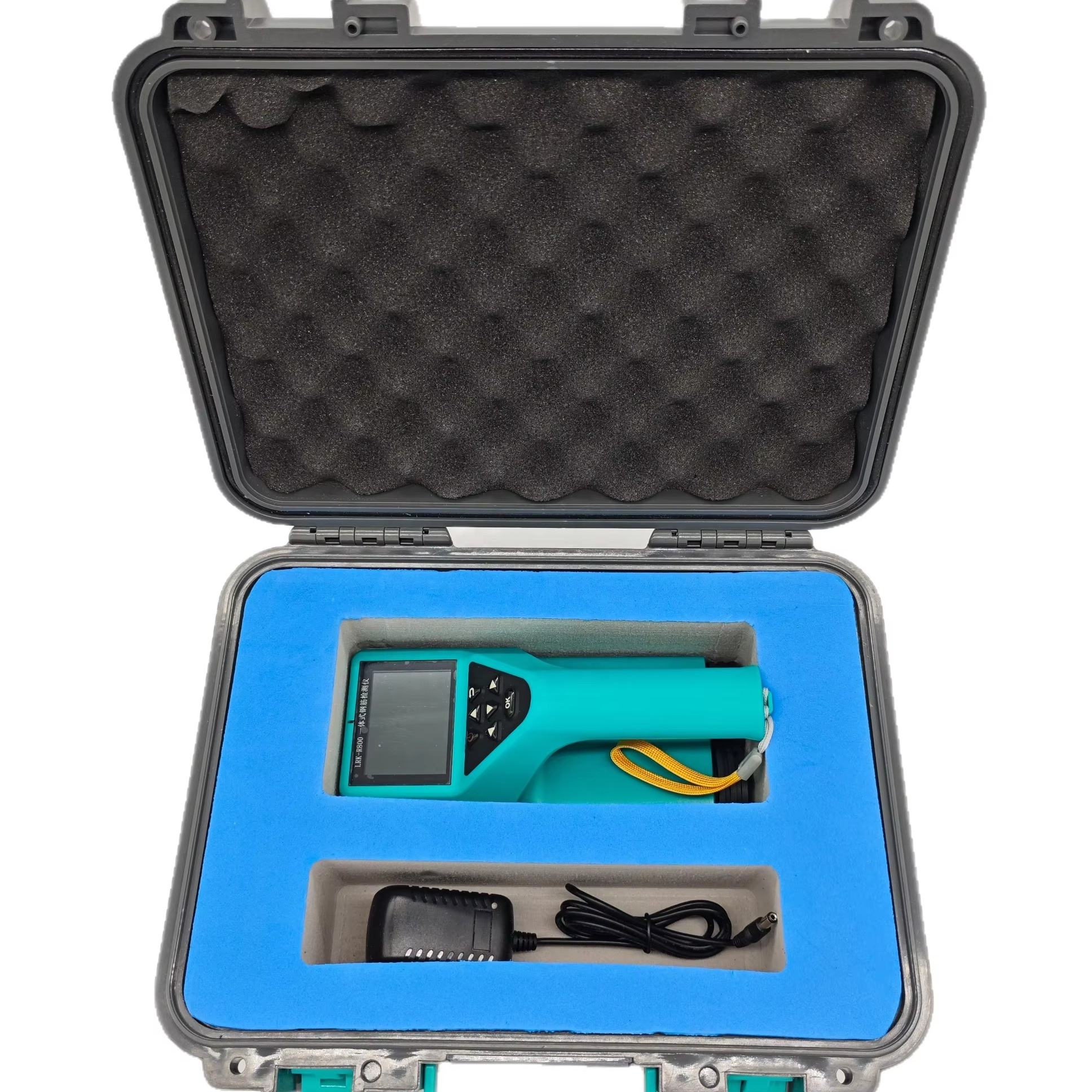

Integrated design, compact size, light weight, convenient to carry;

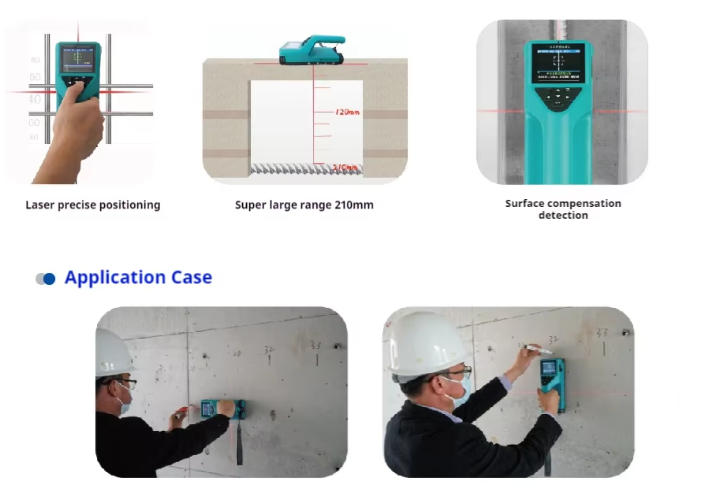

Wireless cloud transmission function (optional), laser precise positioning of steel bar position;

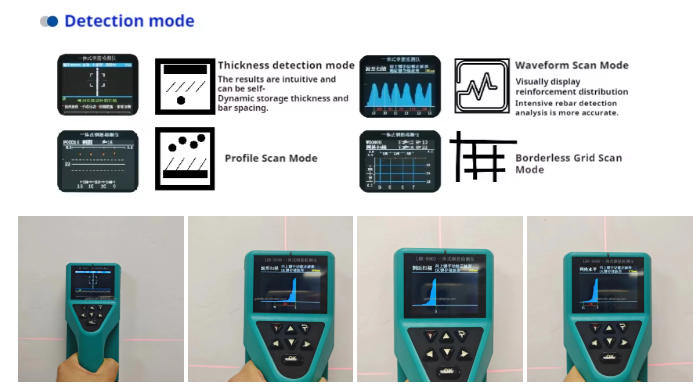

The thickness detection mode is intuitive and can automatically store thickness and steel bar spacing;
The waveform scanning mode intuitively displays the distribution of steel bars, as well as the thickness and spacing of the steel bar protection layer, making the detection and analysis of dense steel bars more intuitive;
The built-in Bluetooth can be transmitted in real-time to the smart construction site cloud platform through a mobile app;
Boundless grid/profile scanning, waveform scanning can measure up to a length of 6m in one measurement.

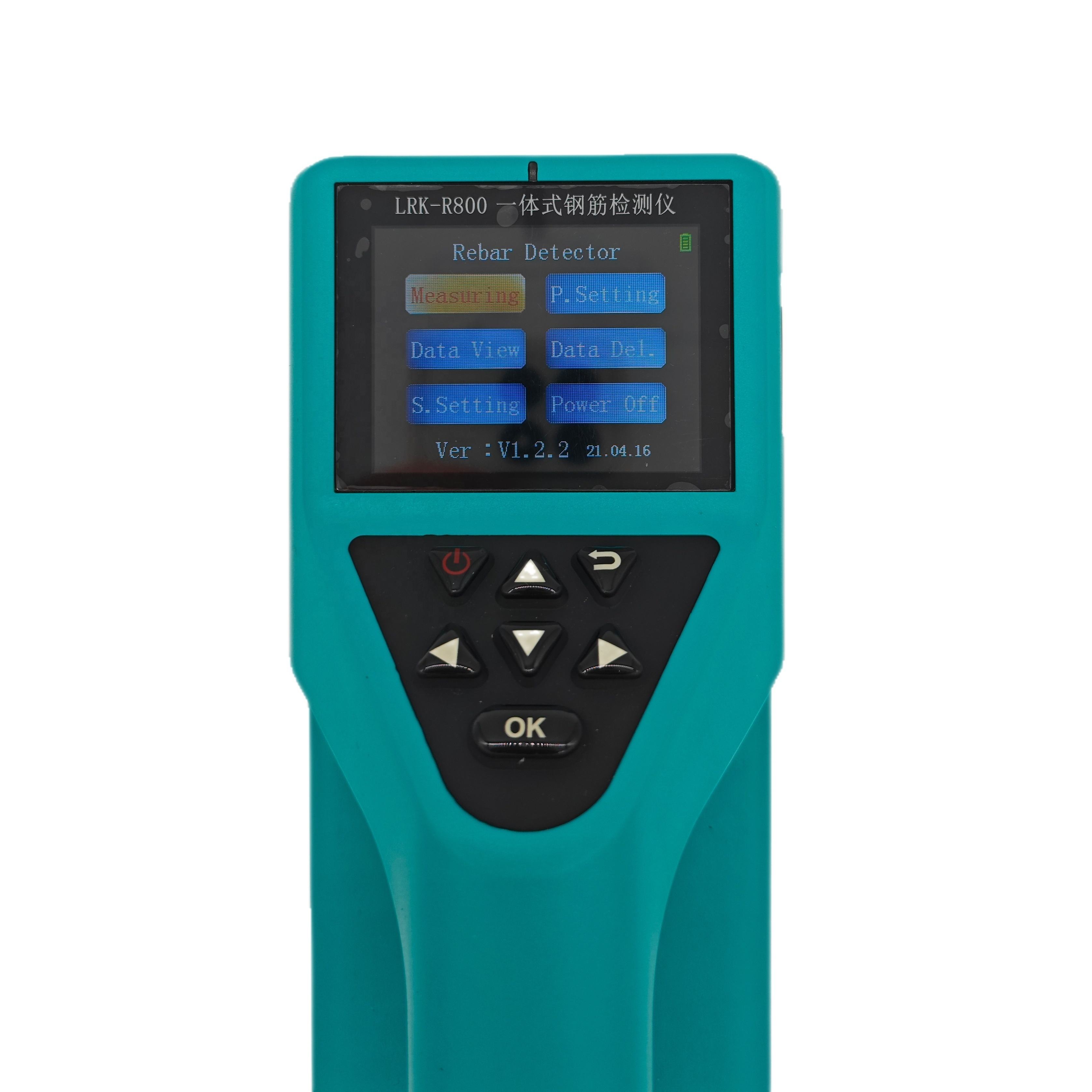

Operation interface image（Other languages can be set）
| Name | Technical indicators | |
|---|---|---|
| Range (mm) | Small range | 1-90mm |
| Large Range | 1-210mm | |
| Maximum allowable error in protective layer thickness (mm) | ±1 (mm) | 1-80mm |
| ±2 (mm) | 81-120mm | |
| ±4 (mm) | 121-210mm | |
| Applicable range of diameter estimation (mm) | Φ6mm~Φ32mm | |
| Maximum error in diameter indication | ± 1 specification | |
| Laser positioning function | support | |
| Waveform measurement function | support | |
| Grid measurement function | support | |
| Profile measurement function | support | |
| Data transmission method | TF card, wireless cloud transmission (optional) | |
| Power supply | lithium battery | |
| Storage capacity | 2000 components * 1000 measuring points | |
| Work environment requirements | Temperature -10℃~40℃ Humidity＜90% | |
Scope of application
Inspection and Evaluation of ConstructionQuality of Reinforced Concrete Structures
Real estate industry / Highway bridge
Engineering construction / Urban construction
Industry experienced quality credible
