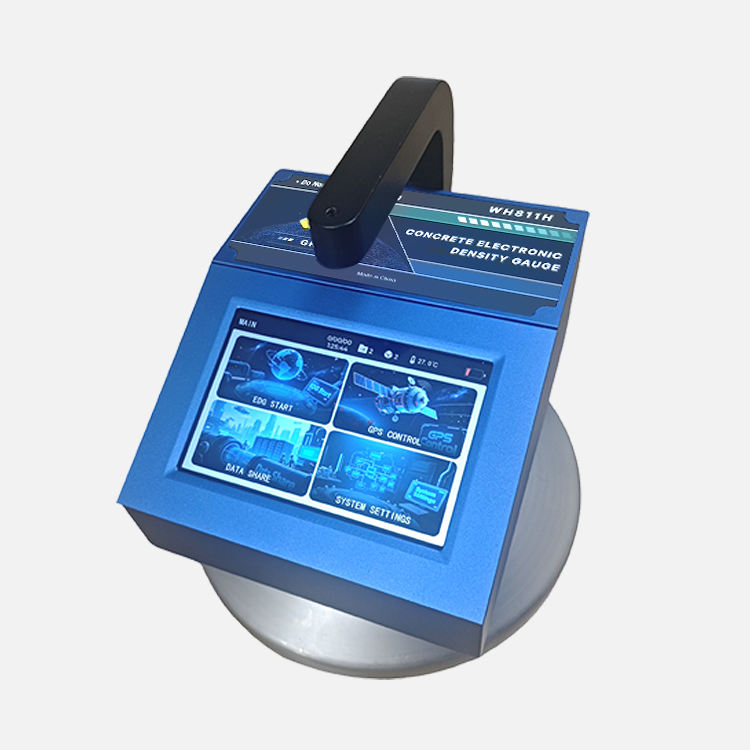

Product Overview
The concrete non nuclear density meter can accurately measure the density and compaction of concrete in roads and foundations. It has the advantages of high measurement accuracy, fast measurement speed, and no radiation.
Technical characteristics
It can replace nuclear density measurement method, sand filling method, and drying method,
No longer require various licenses necessary for nuclear instruments;
There are no special requirements for storage and transportation;

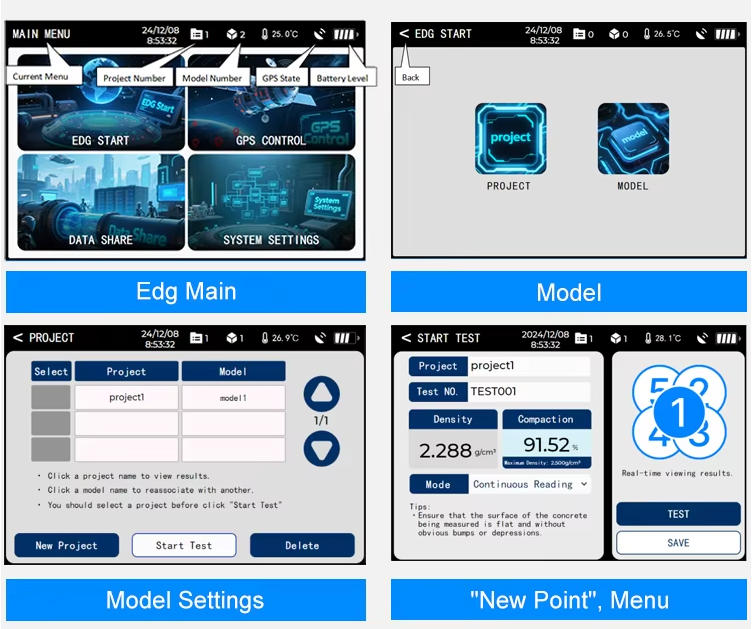

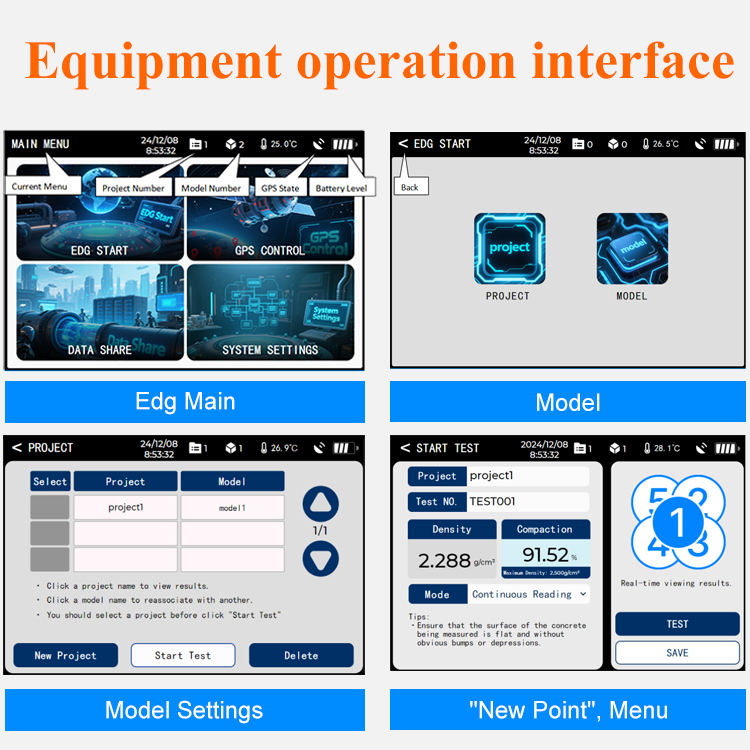

The user interface is good, and the instrument has a Chinese and English operation interface, which is easy to learn;
Real time detection of readings, fast, reliable, accurate, and with good repeatability;
Using point-to-point RF technology to display the final measurement results in real-time;
Ensure that the foundation of engineering structures such as buildings, bridges, roads, and dams is firm
Equipped with LRK series data viewing software; Optional addition of GPS positioning;
| Project | Technical Parameter |
|---|---|
| Humidity range | Standard range of roller compacted concrete |
| Dry density accuracy | Within 3% of standard testing |
| Moisture range | Standard on-site scope of roller compacted concrete |
| Moisture accuracy | Within 2% of standard testing |
| In machine software | Equipped with LRK series data software |
| Operating ambient temperature | -20-50℃ |
| Operating environment humidity | 5-90% |
| Power supply | 12V, 4.0Ah rechargeable battery |
| Battery life | It takes about 8 hours to fully charge |
| Size | Console: 343mmx305mmx152mmm |
| Net weight | Console: 11lbs. (5kg); Attachment: 4Ibs. (1.8kg) |
