Applicable fields
Suitable for monitoring and testing the foundation construction quality of railways, highways, airports, urban transportation, ports, docks, and industrial and civil buildings under dynamic loads, especially suitable for testing narrow areas of the site, such as the detection of road bridge transition sections and road shoulders, existing line foundations, etc. This instrument simulates the impact effect of high-speed trains on the roadbed, and compared with static load tests, it can better reflect the actual stress situation of the roadbed soil. It can quickly measure the dynamic deformation modulus Evd value.
Product features
1.Using high-precision sensors and some components, the performance is stable, the testing accuracy is high, and the testing data is more reliable.
2. Easy to operate, testing speed block, testing a point only takes 35 seconds.
3. Automatically calculate the Evd value and display the curve, which is accurate and intuitive.
4. Wireless micro printers can directly print data on site.
5. Switching between Chinese and English interfaces makes it more convenient for foreign customers to use.
| Project | Parameter | |
|---|---|---|
| Scope of application for testing | Applicable soil type | Various types of soil and soil rock mixed fillers with a particle size not exceeding 1/4 of the load plate diameter |
| Test scope | 10Mpa≤Evd≤225Mpa | |
| Test Impact Depth | 0~500mm | |
| Work environment | Temperature: -10℃-40℃ Humidity: <90%HR | |

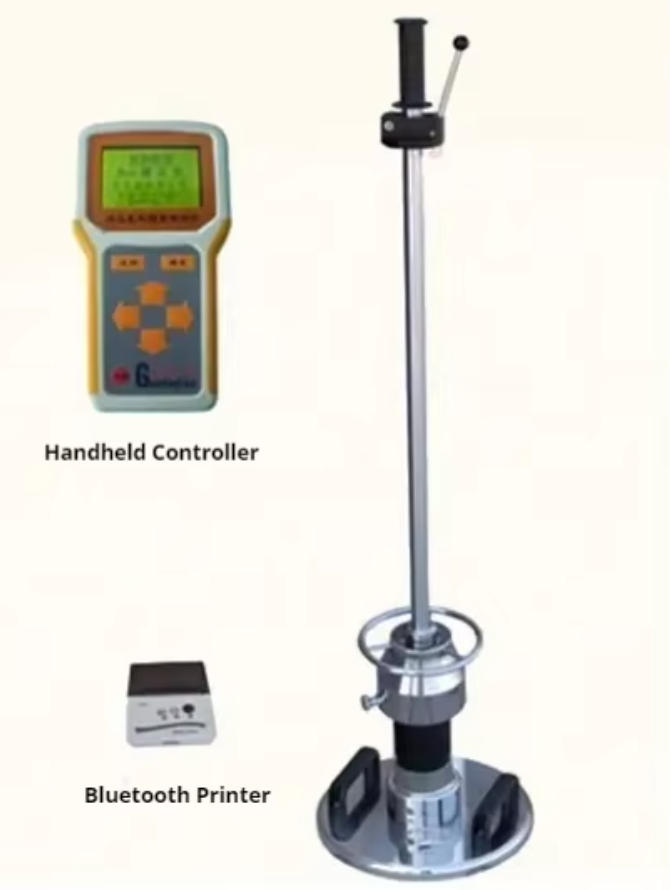

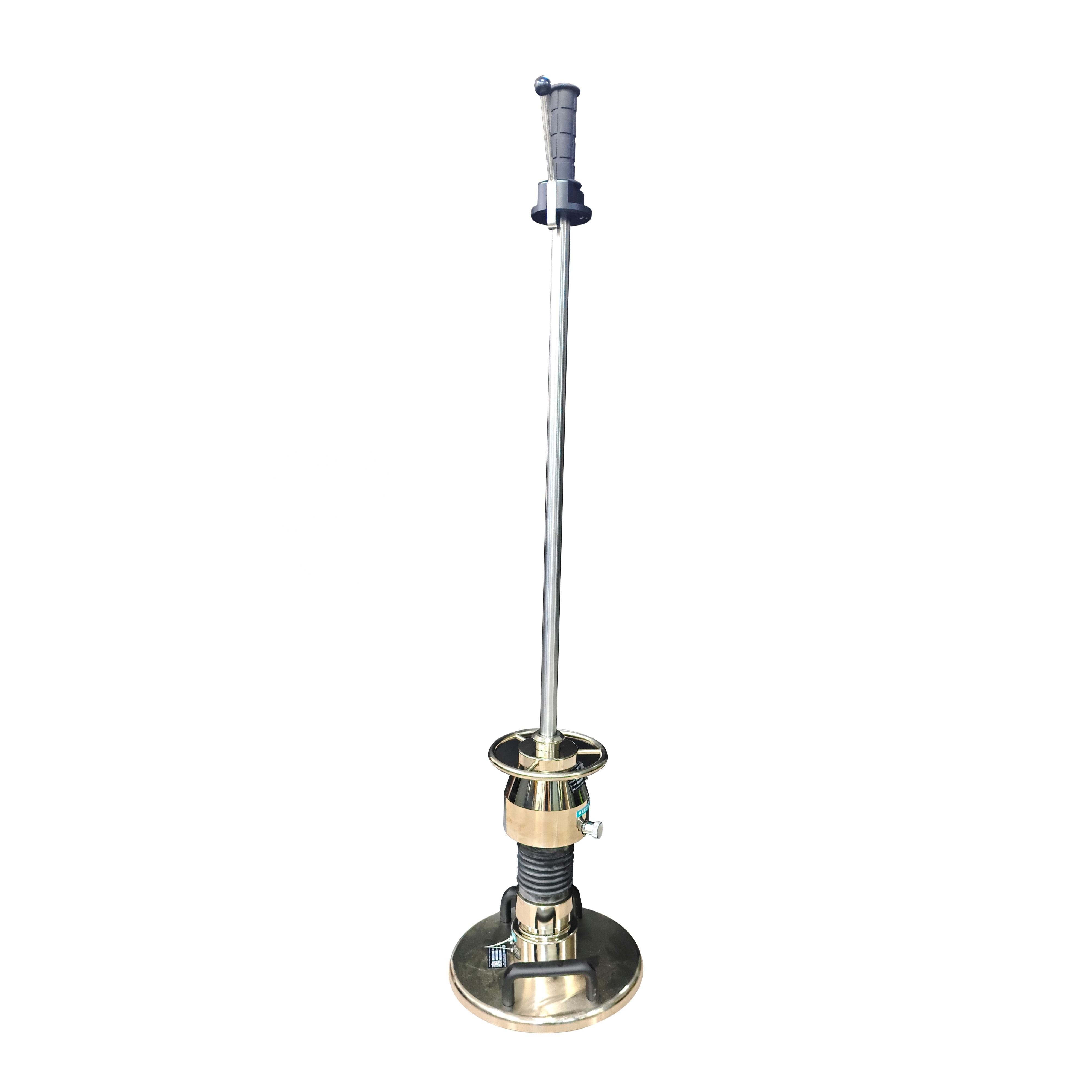

| Data acquisition device | Loading device | Weight: 15kg, including a drop hammer weight of 10kg Falling height value of hammer: 700 ± 20mm Maximum impact force: 7.07kN Impact duration: 18 ± 1ms |
| Load plate | Weight: 15kg, diameter: 300mm, thickness: 20mm | |
| Scope of settlement testing | Settlement range | 0.10mm~2.00mm |

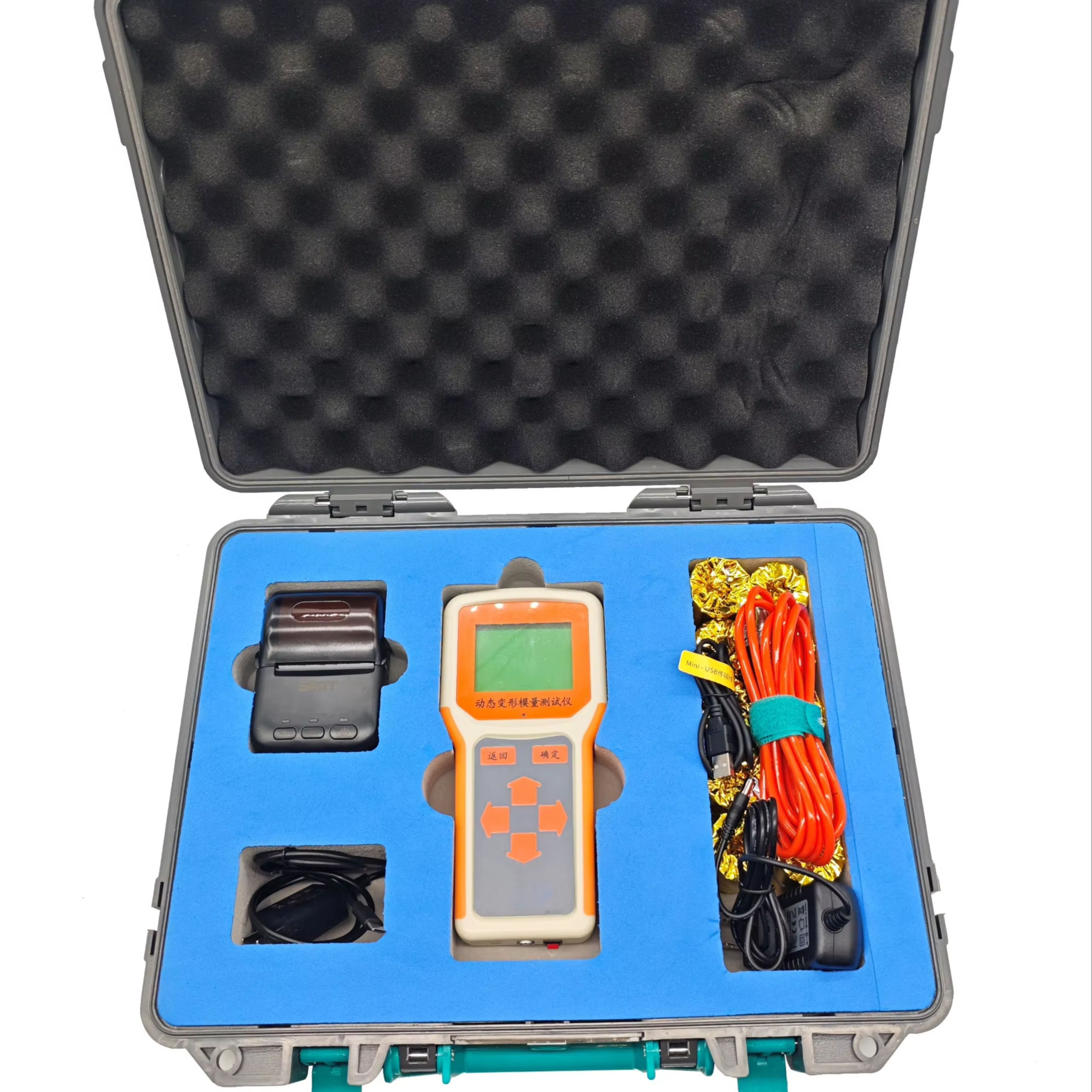

| Handheld host | Storage capacity | 2000 sets of test data |
| Specifications | Screen size: 3 inches Volume: 100X205X40mm Weight: 0.8kg | |
| Power supply method | Lithium battery | |
| Display method | Switching between Chinese and English | |
| Main box | Specifications | Material: Engineering plastic Volume: 420X140X335mm Weight: 4.54kg |

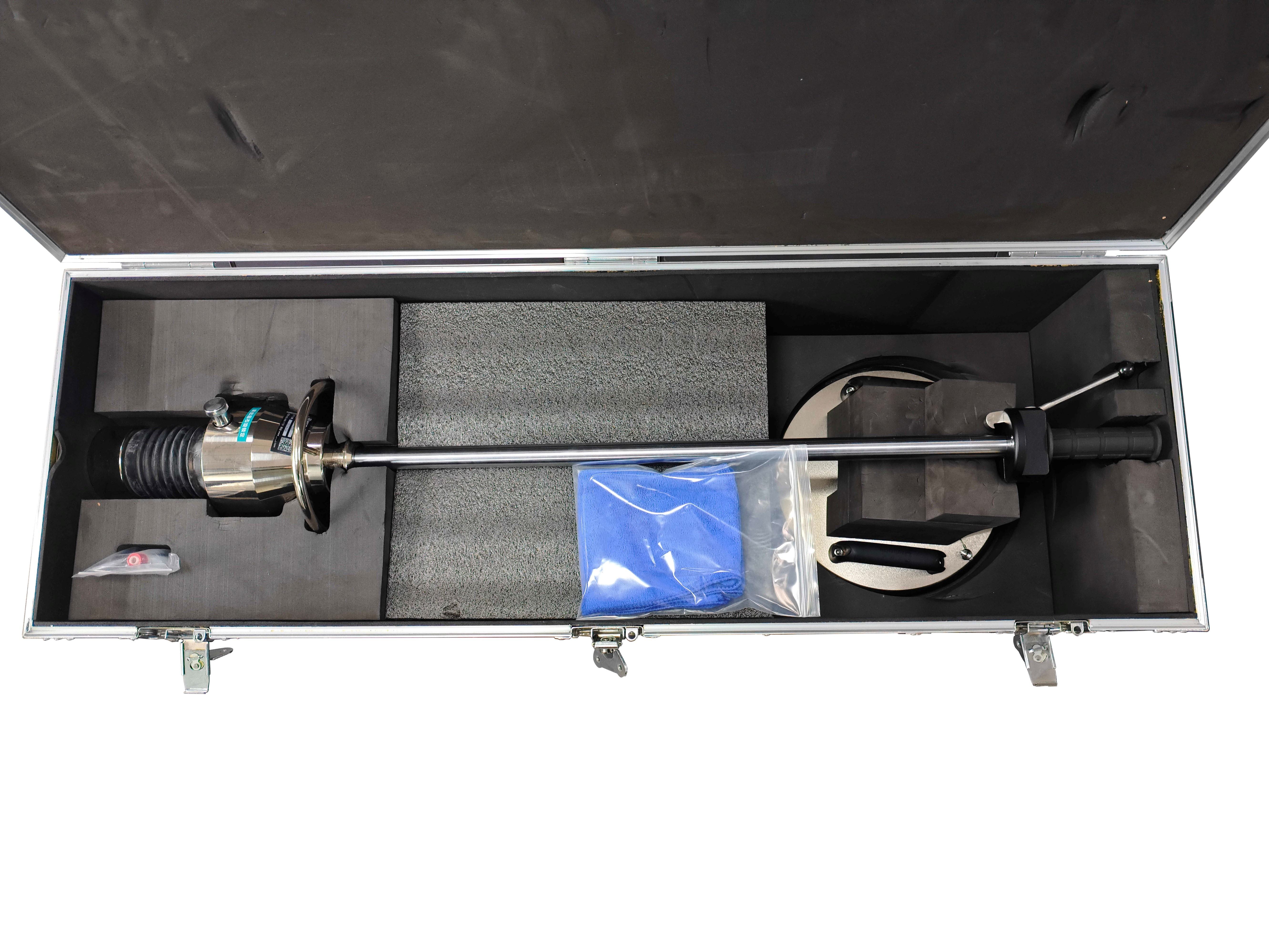

| Outer packaging box | Specifications | Material: Aluminum alloy Volume: 1120X400X380mm Weight: 52kg |
