Usage Overview

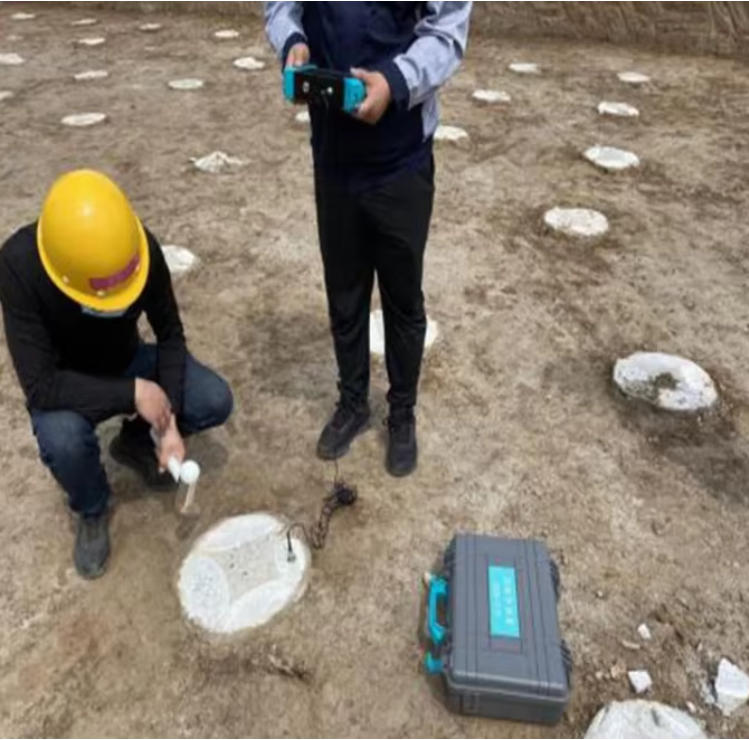

The LRK-P800 pile dynamic tester uses the low strain emission wave method to detect the integrity of piles, and is suitable for testing cast-in-place piles, driven piles, and slender rod-shaped bodies (such as bridge piers) exposed on the top surface in ports, highways, railways, and buildings.
Product features
1. Newly upgraded wireless cloud transmission function;
2. The instrument operation is convenient and fast. Starting from the needs of engineering testing, users can quickly grasp the usage method:
3. Small in size, light in weight, and convenient to carry;
4. Users can operate through the touch screen, with a simple interface;
5. Support multiple waveform processing methods to make defect localization more accurate;
6. Large capacity data memory, supporting mobile storage;
7. Built in rechargeable lithium battery, with long standby time;
| Name | Project |
|---|---|
| System noise voltage | Less than 2mV |
| Dynamic range | Greater than 138dB |
| Amplifier frequency band | 10Hz~10kHz |
| A/D resolution | 16 bit A/D |
| Collection time interval | 2μs~32768μs |
| Collection length | 1024/2048/4096 |
| Time indication error | Less than 1% |
| Number of channels | Single channel |
| Square multiples | 1~128 |
| Trigger method | Signal triggering |
| Sensor sensitivity | 100mV/g |
| Sensor frequency band | 1 - 10000Hz |
| Power supply method | Built in rechargeable lithium battery |
