Product Overview
LRK-LB03 edge protection is a real-time monitoring module powered by batteries. Based on LRK-LB02, it has upgraded various functions, increased the alarm volume and adjustable volume, added high-power infrared radiation and external alarm lights. Real time monitoring of the status of the edge protection network on the construction site using IoT technology, with built-in base station positioning and sound and light alarm devices; Real time alarm can be triggered when the protective net is damaged, mainly used for monitoring the protective net of foundation pits and construction openings.
Product features
Real time monitoring of the damage status of the protective net using resistance detection technology;
Built in GPS positioning device for real-time positioning equipment;
Anti disassembly detection, which can monitor the equipment status in real time and give real-time alarms when the equipment is disassembled;
2-channel protection net damage monitoring, 2-channel door magnetic monitoring, and 1-channel active human intrusion detection;
Built in large capacity lithium battery, integrated solar charging panel can work for a long time;
Built in mobile IoT communication;
Wireless real-time communication, timed startup;
Can link area cameras to capture when damaged (platform function);
High volume alarm broadcast; Wide coverage.
| Project | Parameter |
|---|---|
| On/off monitoring channel | 2 |
| Magnetic lock monitoring channel | 2 |
| Anti crossing passage | 0-39 m |
| Human infrared intrusion | 1 |
| Detection range | 1 m |
| Detection angle | ±30° |
| Response time | 1 s |
| Alarm method | Audible and visual alarm |
| Functional modules | Anti disassembly |
| Communication method | Built-in mobile IoT card communication |
| Power supply mode | Battery + solar energy |
Application Area

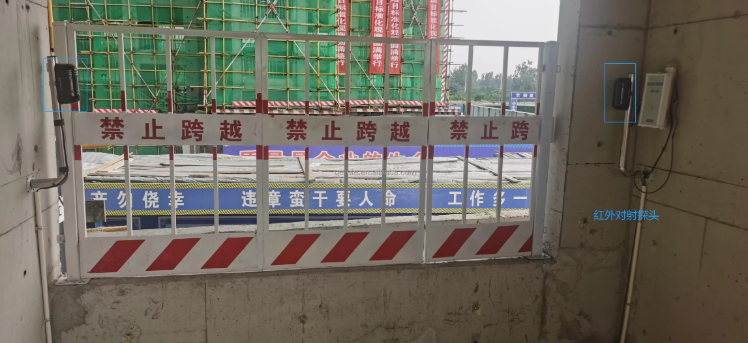

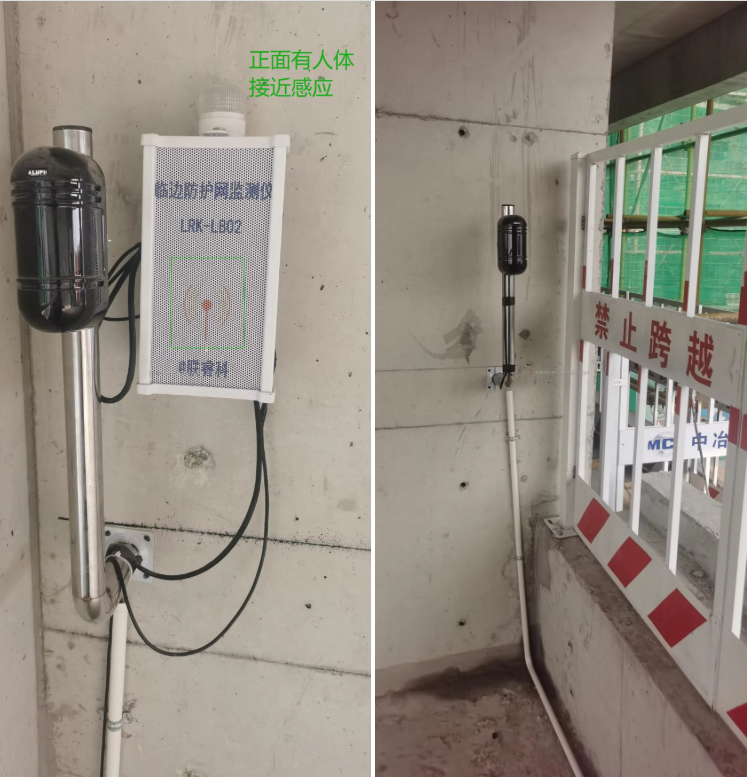

The real-time monitoring device for edge protection network has applications in multiple fields, including transportation, electricity, water conservancy, communication, environment, construction, geology, law enforcement, fire protection, navigation, railway, agriculture, forestry, and real estate. In addition, they are widely used in slope stability monitoring, intelligent boundary protection, and deformation analysis of high and steep slopes. These applications demonstrate the widespread application and importance of real-time monitoring devices for edge protection nets in different fields.
