Measurement principle

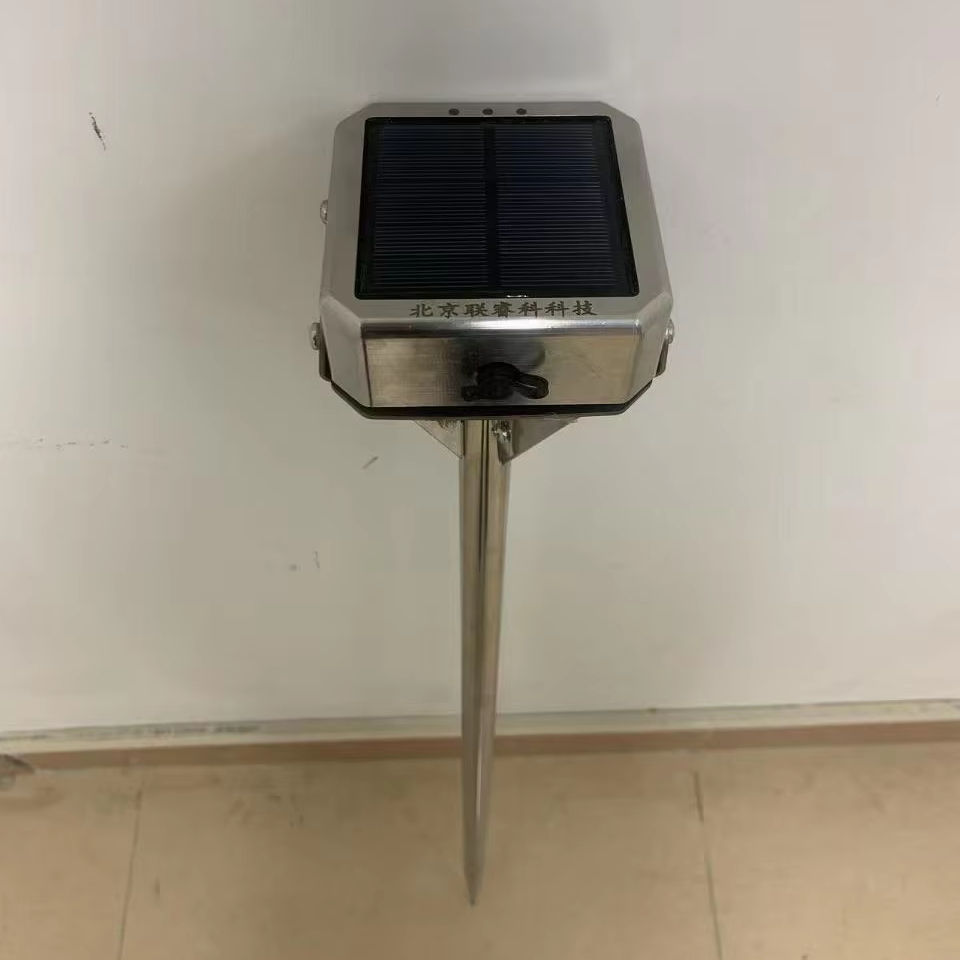

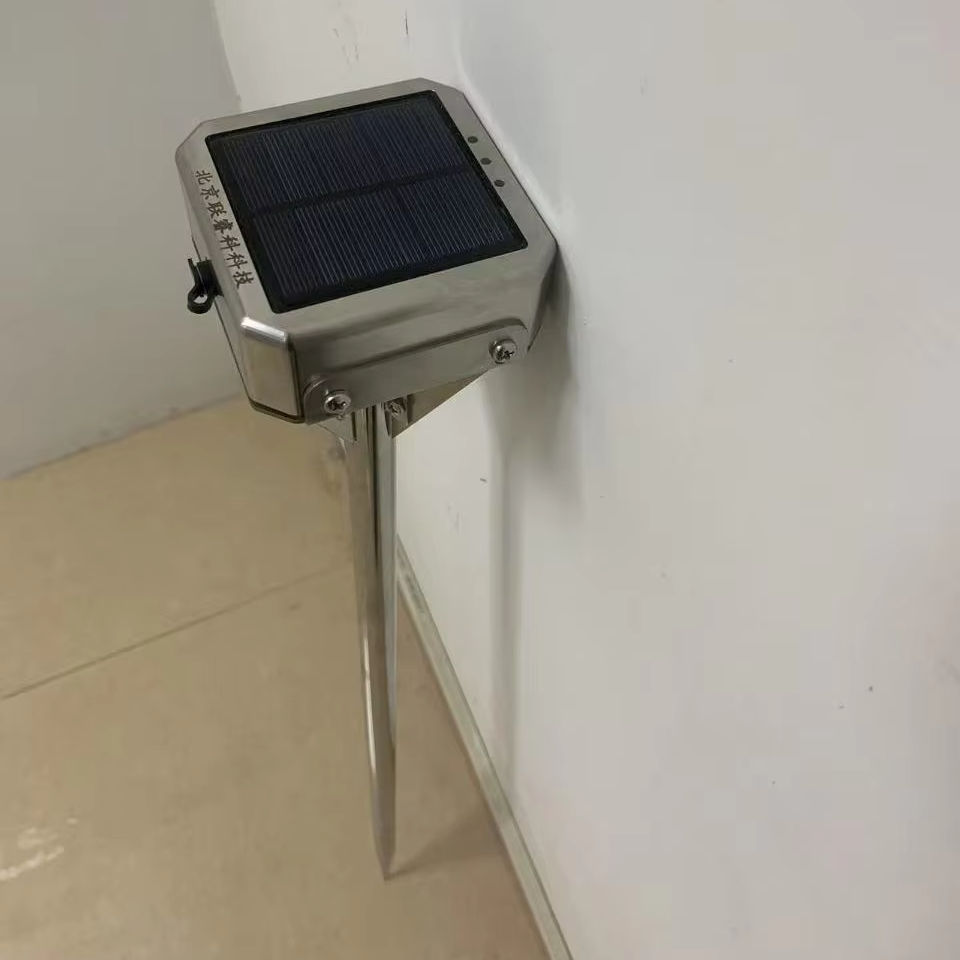

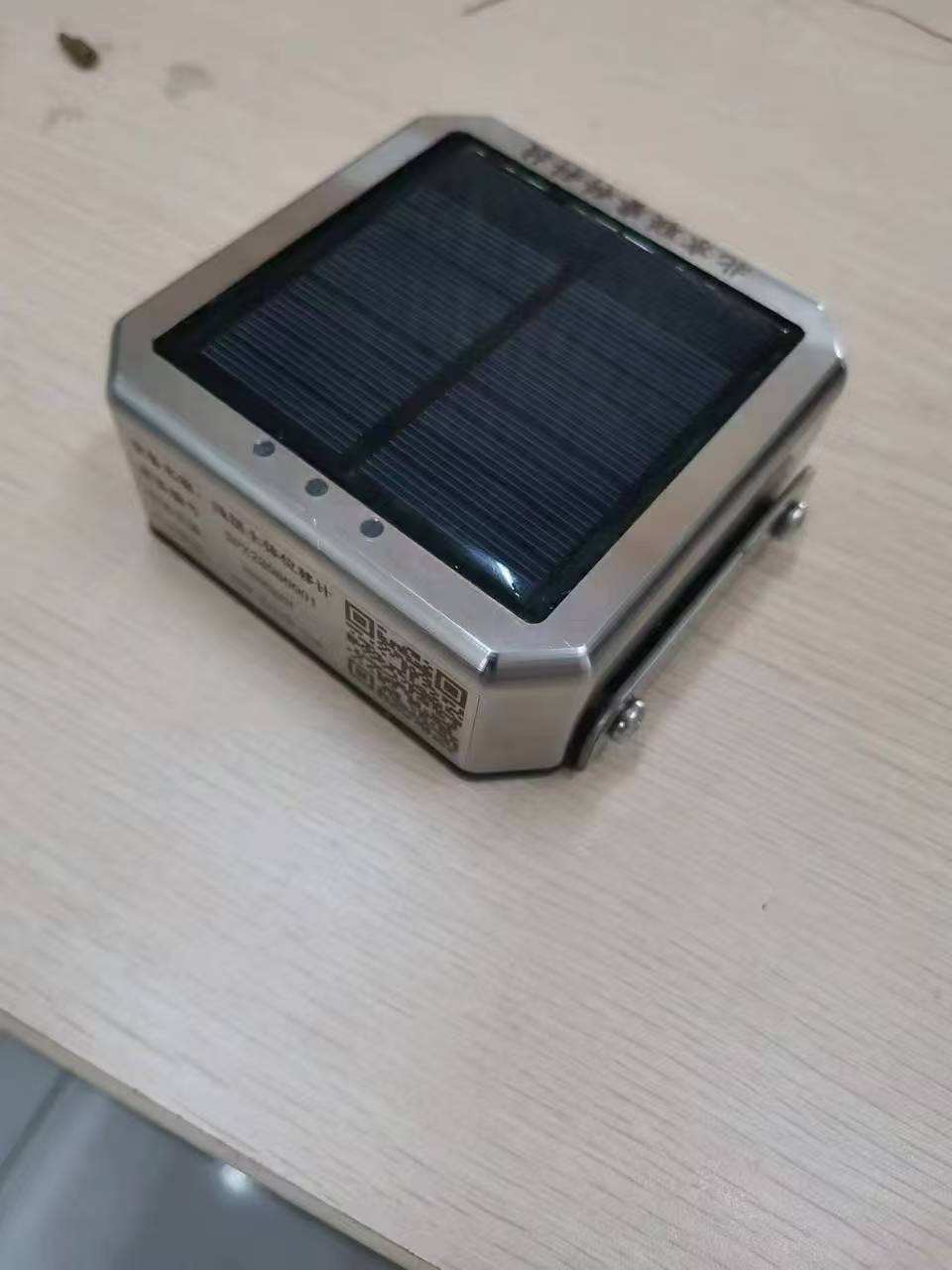

The LRK-SFZ shallow soil displacement meter (hereinafter referred to as the displacement meter) is used to monitor the displacement of shallow soil (1m) and upload the monitoring data to a designated server. The displacement meter is equipped with an 8800mAh lithium-ion battery and solar panel, which can meet the needs of long-term monitoring
Measurement principle

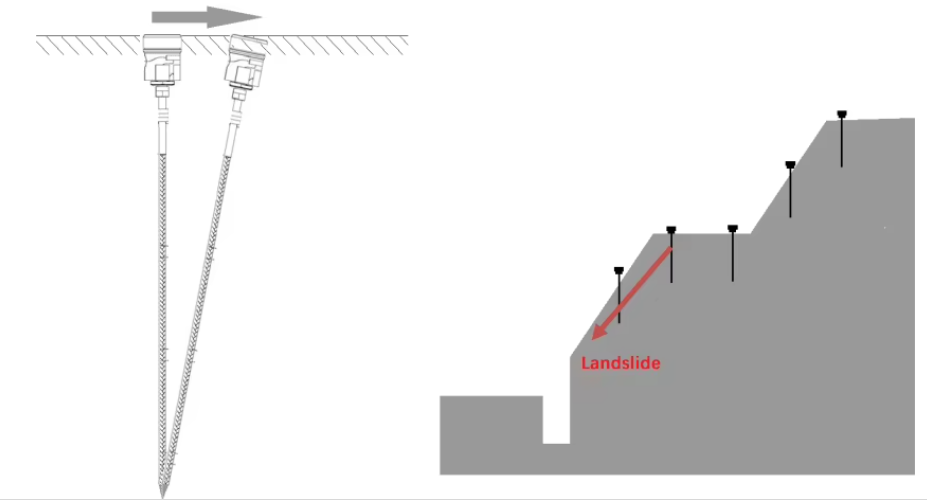

The actual displacement of an object is calculated through trigonometric functions by measuring the inclination of a fixed length measuring rod.
Product Features
*Used for measuring displacement such as loosening and collapse of shallow soil;
*Equipped with high-capacity batteries and solar panels, it can meet long-term outdoor monitoring needs;
*Adopting plug-in installation, easy and convenient installation;
*Built in high-precision three-dimensional angle sensor, intelligently calculates soil displacement and deformation;
*Built in 4G IoT communication module, capable of single point transmission;
*Equipped with grid matrix measurement software, it can dynamically monitor the safety status of the area;
*Magnetic induction locking and power on to prevent data from being unable to be measured due to accidental shutdown;
*It can be connected to the Lianruike Equipment Cloud Manager APP to achieve comprehensive management;
| Project | Parameter |
|---|---|
| Measurement range | X. Y, Z directions |
| Measurement accuracy | 0.2mm/m deep |
| Installation method | Inserted or pre embedded |
| Operation temperature | -40℃C~80°C |
| Power supply mode | Built in lithium battery+solar energy |
| Communication method | 4G Internet of Things |
