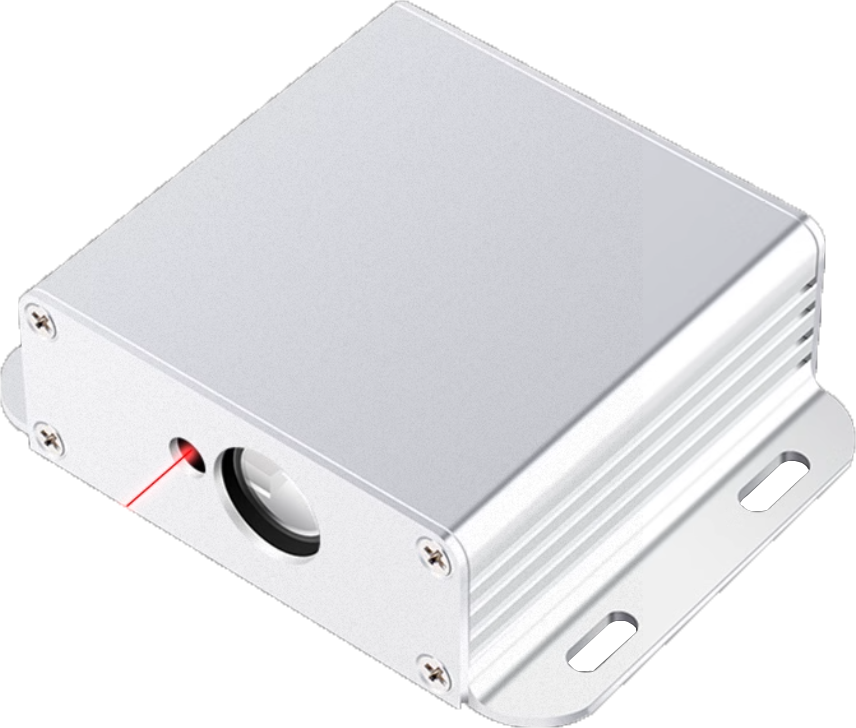

Product Overview
The RS485 laser displacement meter is a measurement device that integrates high-precision laser measurement technology and RS485 digital communication interface. Its main characteristics are high measurement accuracy, good stability, strong anti-interference ability, and the use of non-contact measurement methods to ensure that it never wears out. This laser displacement meter is suitable for monitoring the deformation, displacement, settlement, strain, slip, and other aspects of various structures, such as. At the same time, using a reflector can also measure the static water level of rivers, lakes, and reservoirs.
Application Area
RS485 laser displacement sensors are mainly used for deformation of structures such as foundation pits, bridges, tunnels, as well as industrial automation measurement, water level measurement, etc. They are mostly used for deformation, displacement, settlement, slip and other measurements.
Product features
*Adopting millimeter level high-precision laser ranging module;
*Adopts RS485 digital communication method, with strong anti-interference ability;
*Low power design, suitable for long-term field measurements;
*Built in high-frequency sampling module, with a maximum sampling frequency of 20Hz;
*Equipped with specialized installation accessories for easy installation;
*It can be connected to the Lianruike Equipment Cloud Manager APP to achieve comprehensive management;
| Project | Parameter |
|---|---|
| Measurement range | 10mm-30m/50m/70m |
| Measurement accuracy | ±1mm + d |
| Indicator light | Red-laser |
| Shell Material | Aluminum alloy |
| Data transmission | RS485 |
| Measurement method | Timed collection |
| Built-in battery | 13Ah |
| Power supply | 5V2A |
