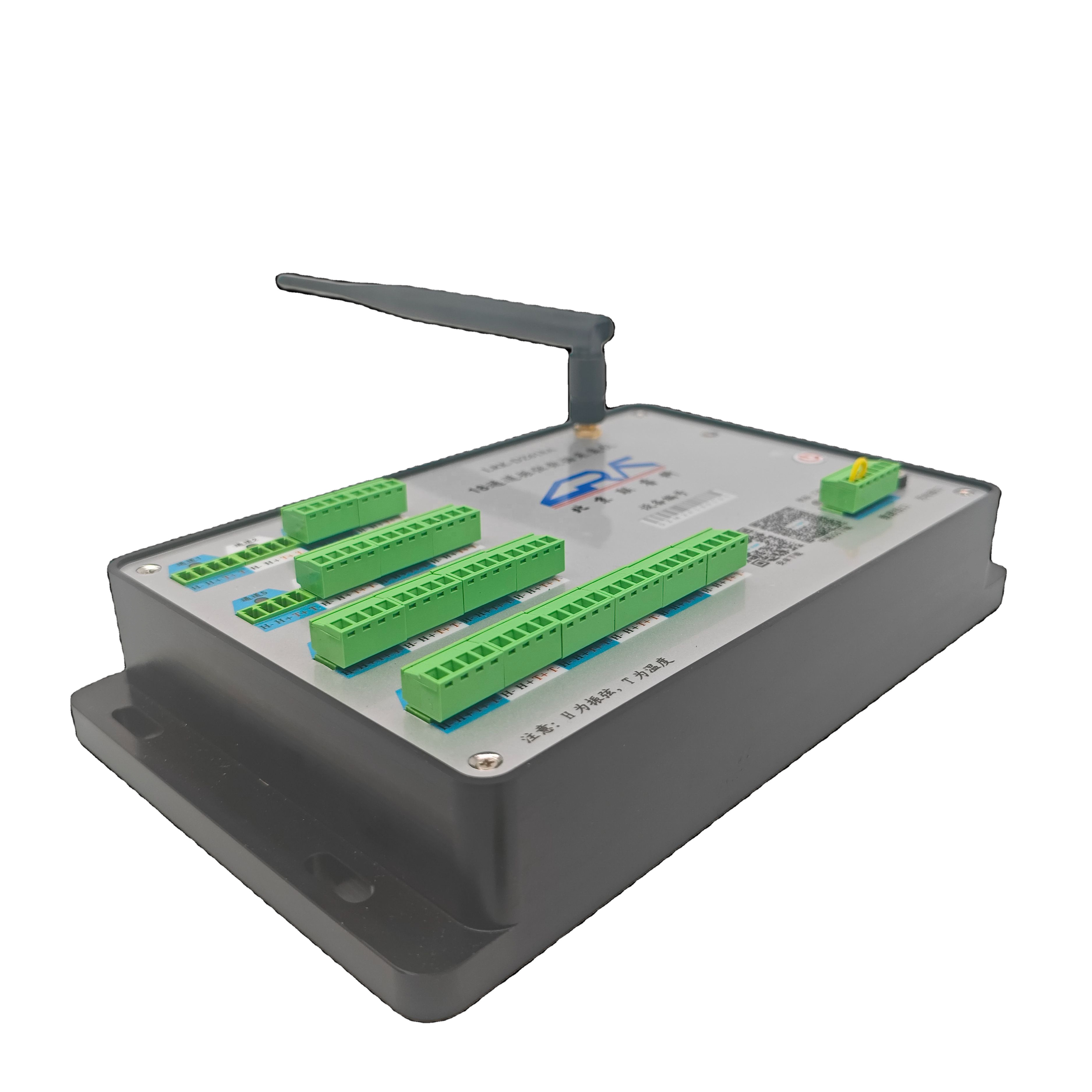

32 Channel Vibrating Wire Data Acquisition Instrument Vibrating Wire Sensor Reading Acquisition Instrument
Technical characteristics
1.32 channel vibrating string acquisition instrument, capable of simultaneously collecting 32 channel vibrating string and 32 channel temperature signals;
2. Built in IoT transmission module to collect data and transmit it directly to the server;
3. Flexible control switching using real-time or timed collection;
4.32 independent dual switch options, high compatibility, and independent sampling for each channel.
The device supports the English version
Wireless Vibrating Wire signal Acquisition Instrument 18/32 Channel Engineering Automation Strain Monitoring Data 4G Wireless
Technical Parameter
| Project | Technical Parameter |
|---|---|
| Sensor type | 32 channel vibration string acquisition and temperature acquisition |
| Maximum number of channels | 32 |
| Output signal | RS485 |
| Vibration range | 500HZ-6000HZ |
| Vibration string accuracy | 0.1HZ |
| Temperature range | -40℃~140℃ |
| Minimum sampling interval | 30 minutes |
| Power supply method | Built in lithium battery with external 5V power supply |
| Communication methods | Mobile Internet |
| size | 200mmX180mmX90mm |
Usage Scenario
