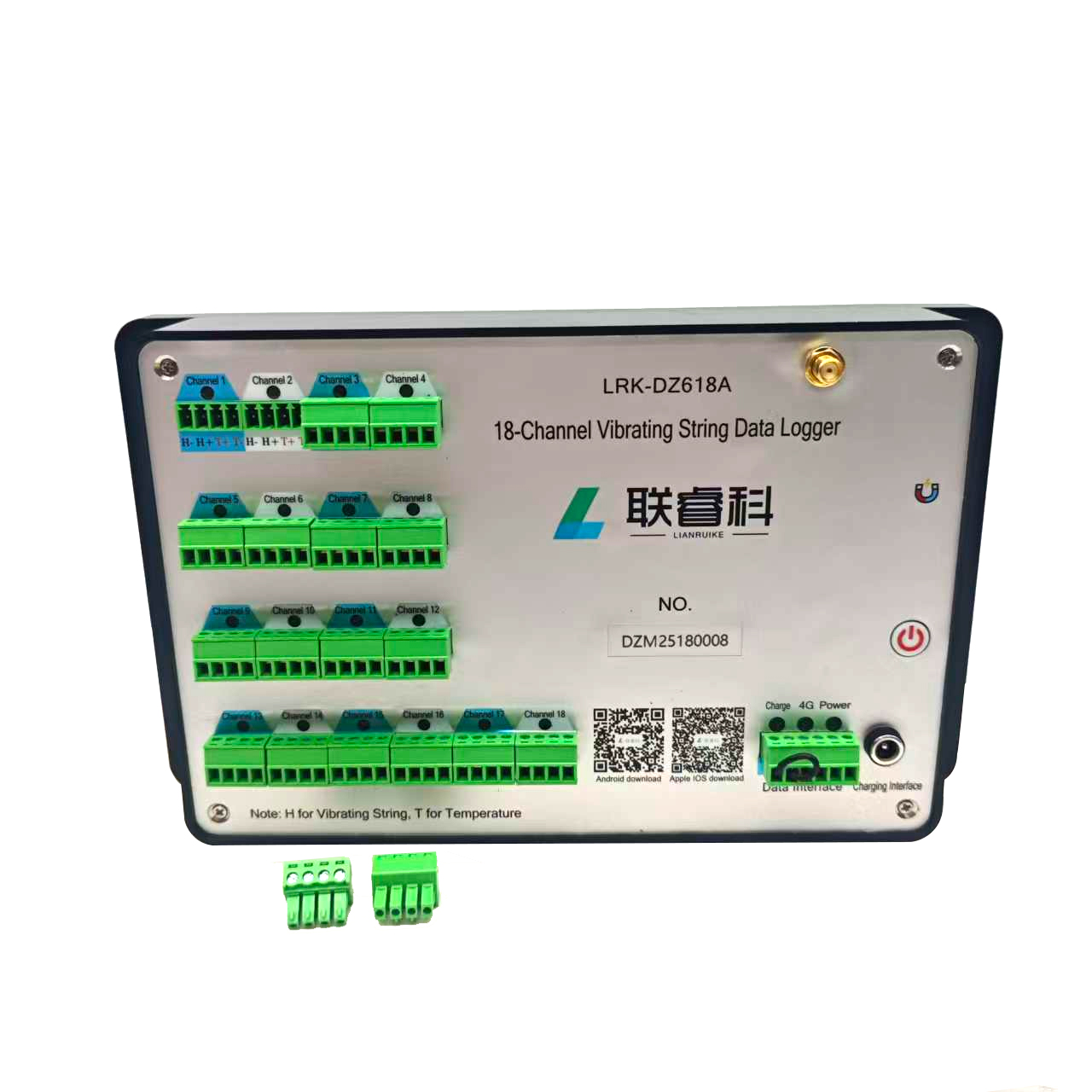

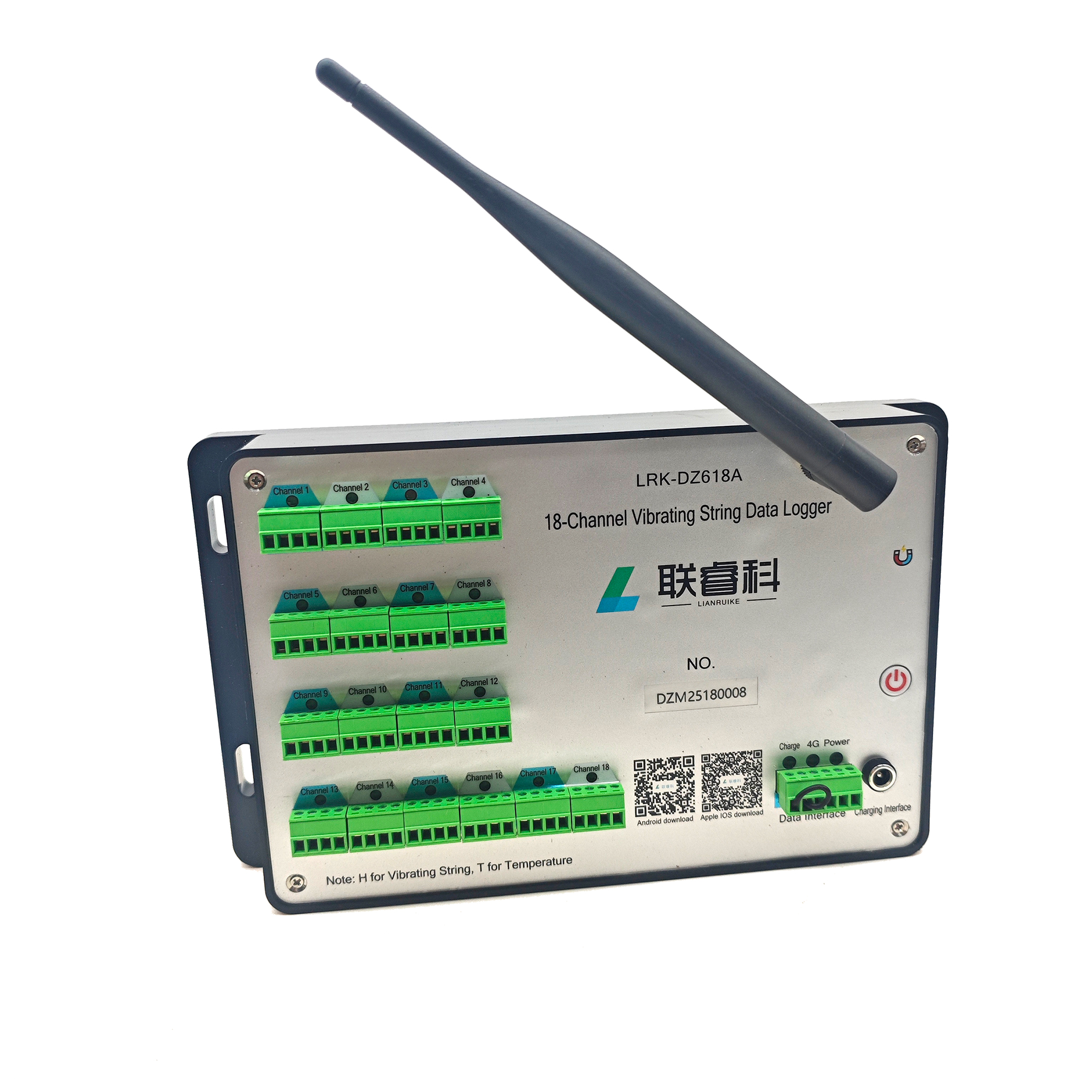

18 Channel Vibrating Wire Data Acquisition Instrument Vibrating Wire Sensor Reading Acquisition Instrument

Technical characteristics

1.18 channel vibrating string acquisition instrument, capable of simultaneously collecting 18 channel vibrating string and 18 channel temperature signals;

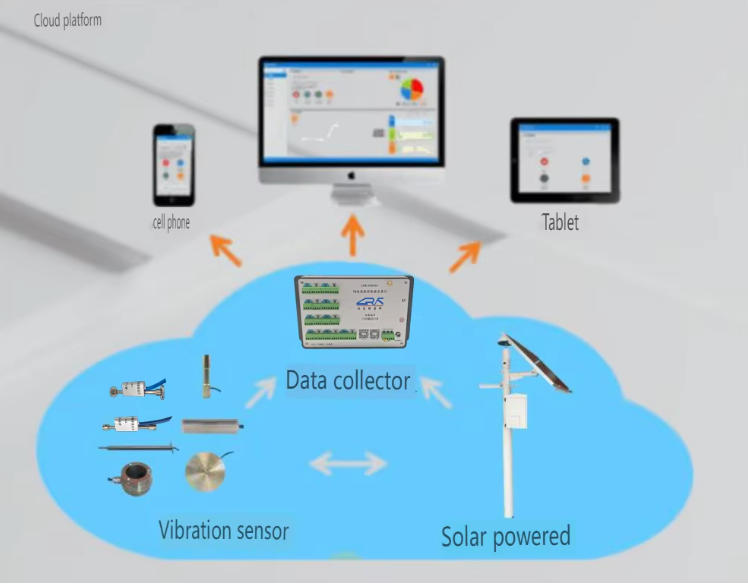

2. Built in IoT transmission module to collect data and transmit it directly to the server;

3. Flexible control switching using real-time or timed collection;

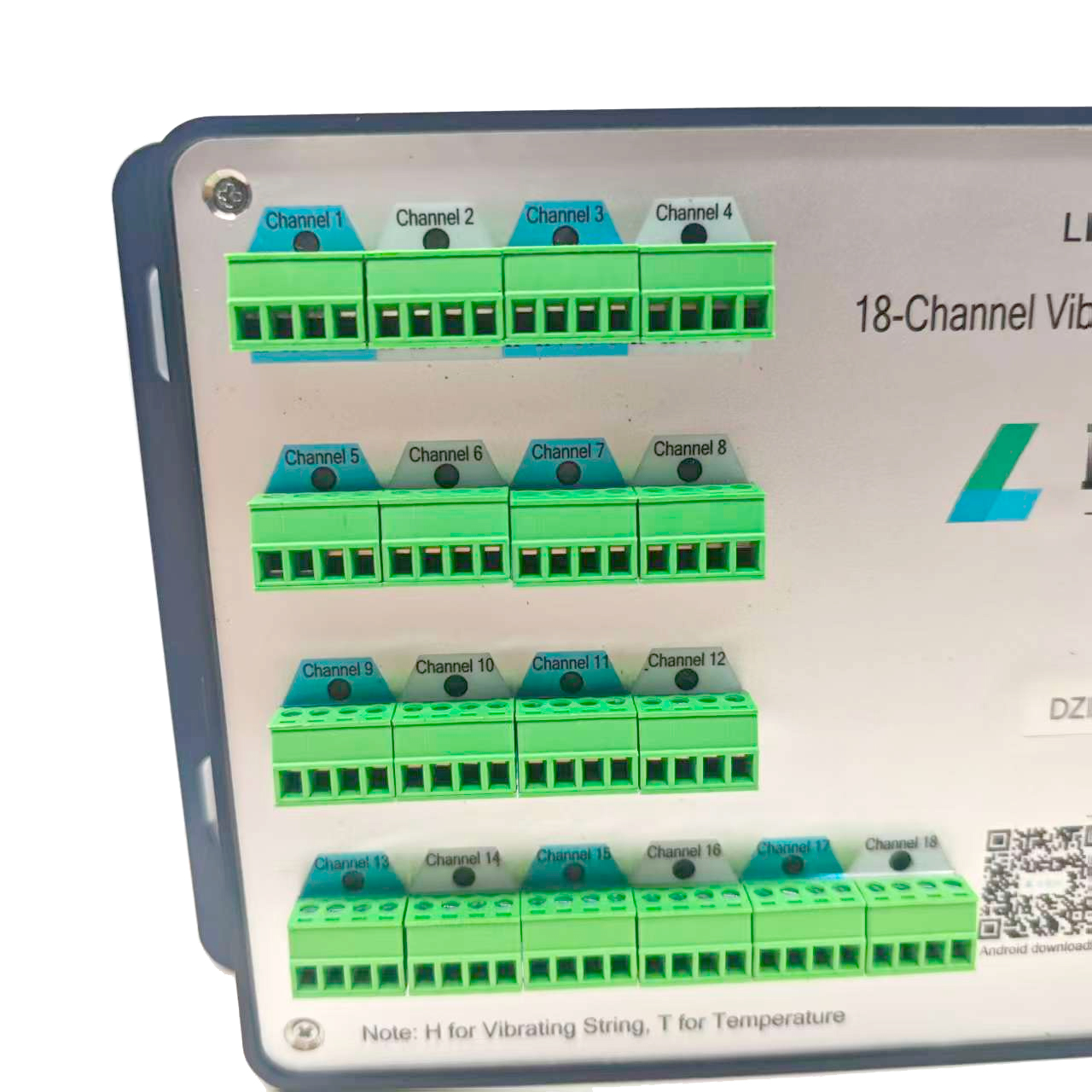

4.18 independent dual switch options, high compatibility, and independent sampling for each channel.

Wireless Vibrating Wire signal Acquisition Instrument 18/32 Channel Engineering Automation Strain Monitoring Data 4G Wireless

Technical Parameter

Project	Technical Parameter
Sensor type	18 channel vibration string acquisition and temperature acquisition
Maximum number of channels	18
Output signal	RS485
Vibration range	500HZ-6000HZ
Vibration string accuracy	0.1HZ
Temperature range	-40℃~140℃
Minimum sampling interval	30 minutes
Power supply method	Built in lithium battery with external 5V power supply
Communication methods	Mobile Internet
size	200mmX180mmX90mm

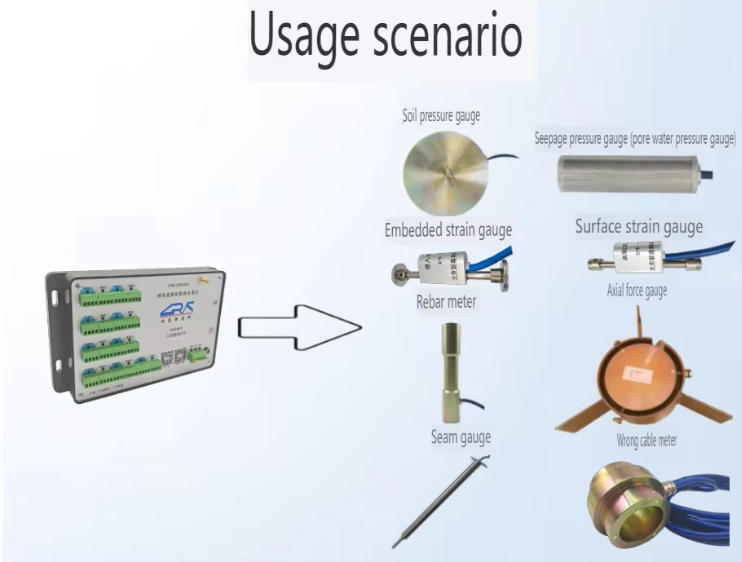

Usage Scenario
