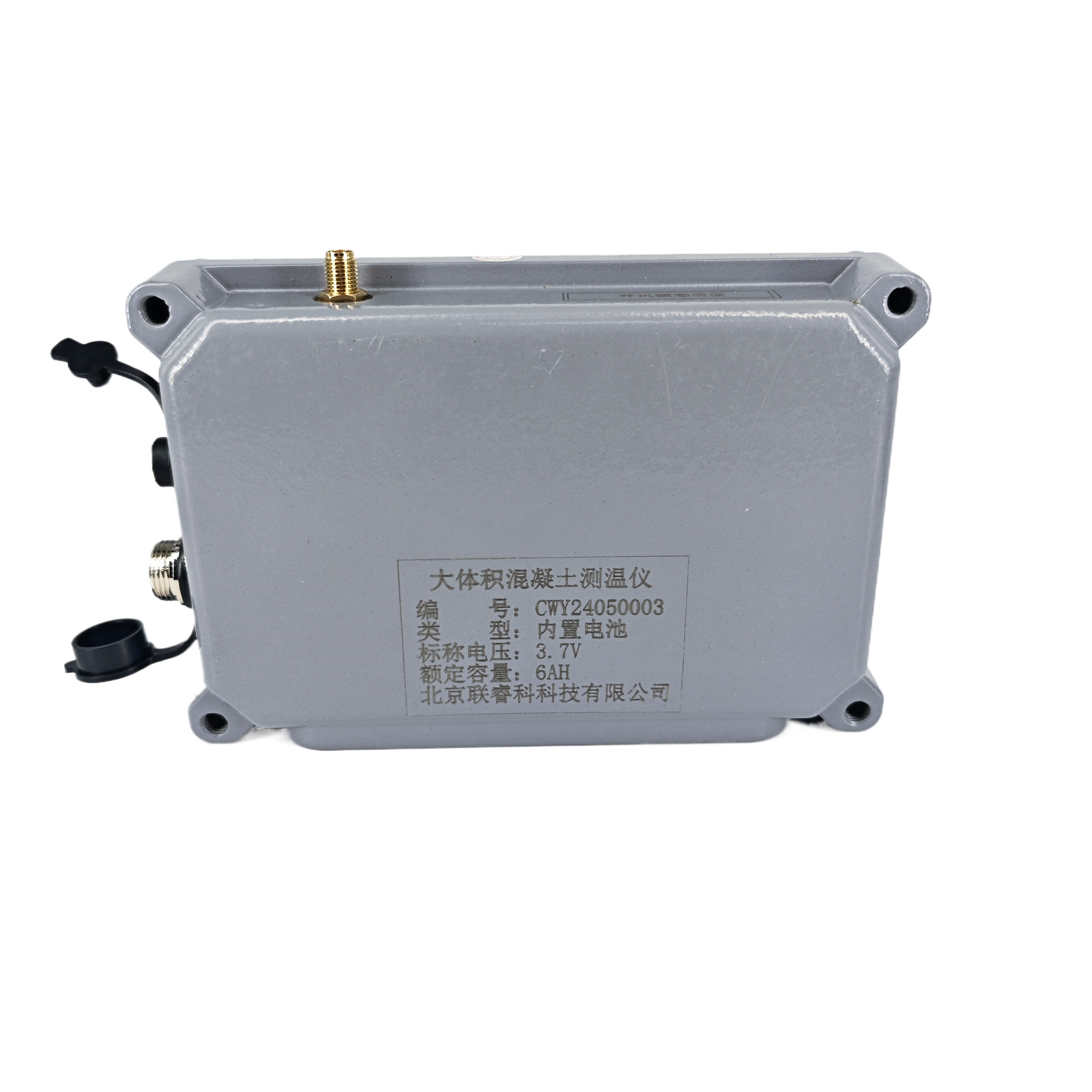

Product Overview
LRK-CW01 Large Volume Concrete Temperature Measurement Terminal is a smart construction site data monitoring module developed and produced by Beijing Lianruike Technology Co., Ltd. It integrates collection module, calculation module, and data communication module. It can automatically collect temperature data and wirelessly transmit the collected data to the server cloud platform through mobile communication network, achieving automatic and intelligent monitoring of data collection and transmission; Widely used in the maintenance and temperature measurement of large volume concrete box girders, as well as in the pouring of bridges, piers, low foundation abutments, and frames. It has the advantages of easy installation, stable data, long standby time, and wide application.
Product features
*Large screen color display, real-time viewing of data;
*Automatically upload data in real-time, with no distance limit;
*Low power design, automatic sleep function;
*Temperature sensors are interchangeable, with stable performance and high accuracy;
*Equipped with professional software, integrating functions such as data viewing, curve display, and report export
| Project | Parameter |
|---|---|
| model | LRK-CW01 |
| transmission mode | GPRS |
| Minimum transmission interval | 10 minutes |
| Display Size | 4.3 "color screen, capacitive touch |
| Temperature measurement range | -30~150℃ |
| Temperature measurement accuracy | ±0.3℃ |
| Number of channels | 16 |
| Wake up method | Timed wake-up |
| Power supply method | Lithium battery, external solar panel (optional) |
| Standby time | Related to transmission interval |
| Installation method | apt-get install |

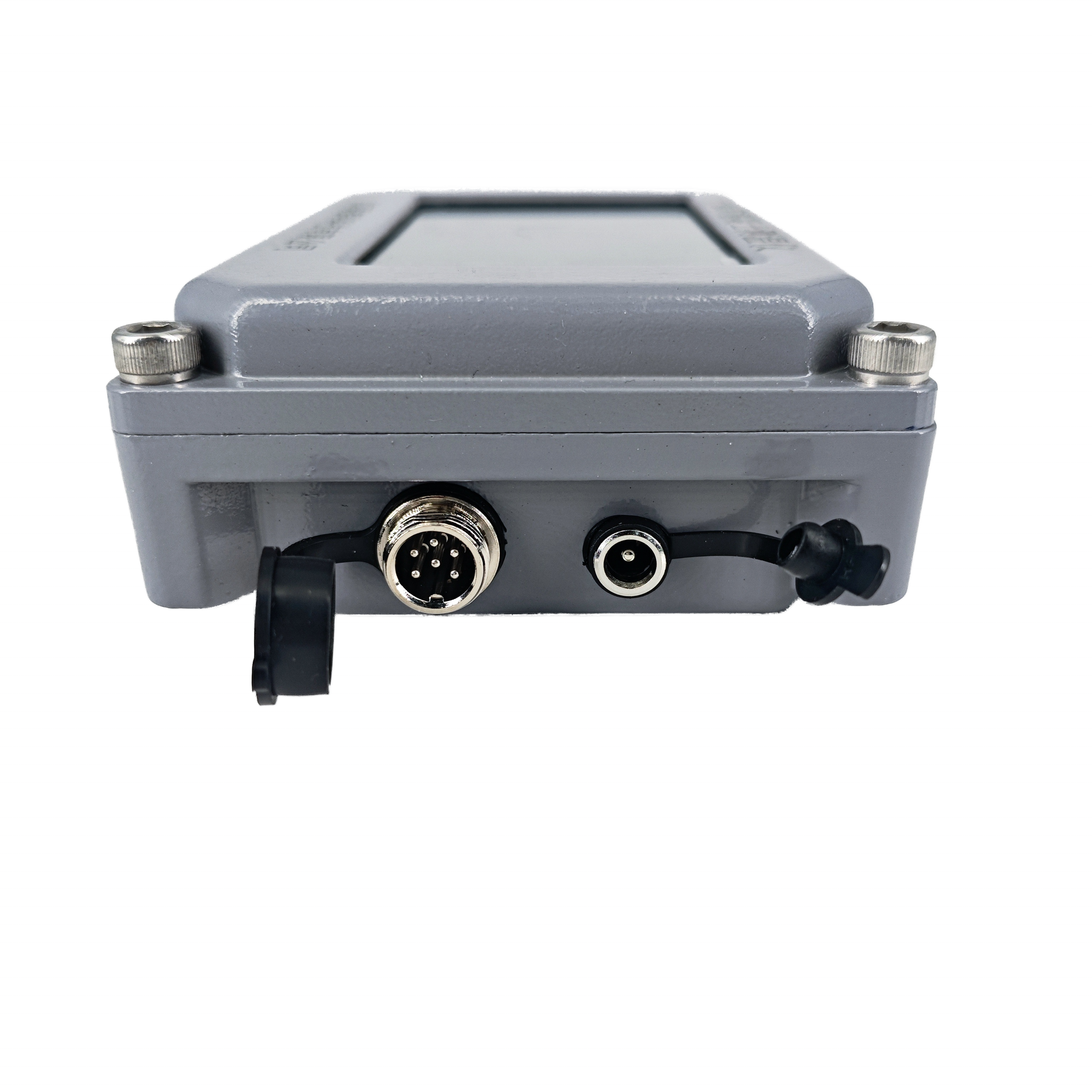

| Temperature measurement line interface | 3.5 Audio plug |
| Temperature measurement line length | ＜50 meters，customizable |
| Size and size | 125mm*80mm*30mm |
