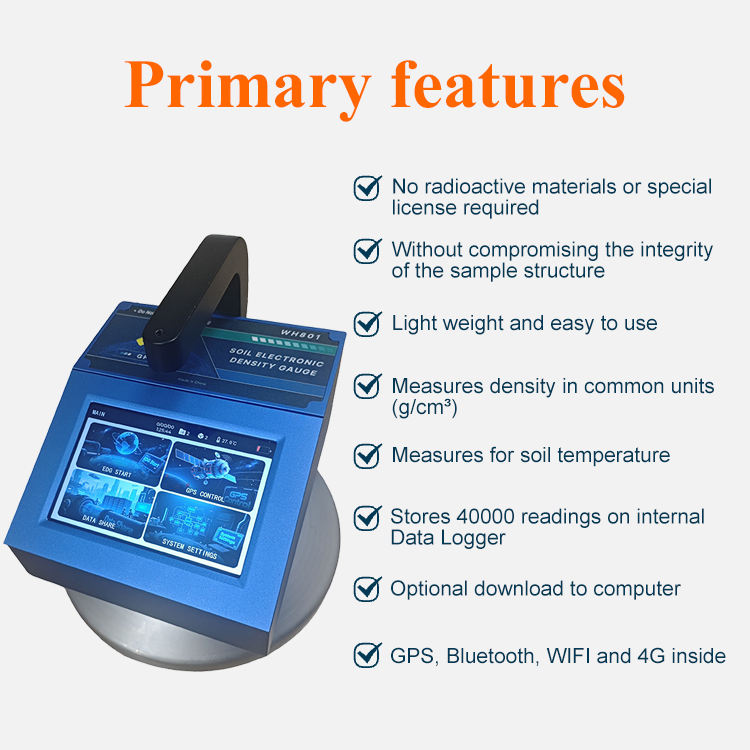

Product Features

The non-destructive soil non nuclear density meter (hereinafter referred to as the non nuclear density meter) uses advanced electromagnetic technology to obtain accurate readings of soil surface density. Its main characteristics include:

※ No special radiation testing or certification is required

※During the testing process, there is no need to damage the sample structure

※ Compact size and easy to use

※The test results are in international units (g/cm ³)

※ Temperature compensation

※The internal memory can store test data for 40000 measurement points

※Equipped with a satellite positioning module for easy recording of detection positions

※ Provides multiple data transmission methods such as Bluetooth, WIFI, 4G, USB, etc

※ Equipped with high-capacity lithium-ion rechargeable batteries, it can work continuously for a long time

Working principle:

In the presence of a magnetic field generated by the induction plate, the nuclear free density meter uses an innovative spiral shaped detection magnetic field to test the response of the soil, converting electromagnetic signals into material density readings displayed on the screen. After the instrument calibration is completed, the density can be read in one go

As shown in the following figure:

Technical Parameter

Project	Technical Parameter
Humidity Range	Standard compacted soil site scope
Dry Density Accuracy	Within 3% of standard test
Moisture Content Range	Standard compacted soil site scope
Moisture Accuracy	Within 2% of standard test
Built-in Software	Equipped with LRK series data software
Operating Ambient Temperature	-20 to 50°C
Operating Ambient Humidity	5–90%
Power Supply	12V, 4.0Ah rechargeable battery
Battery Life	Approximately 24 hours of continuous use on a full charge
Dimensions (Control Unit)	343mm × 305mm × 152mm
Net Weight	Control unit: 11 lbs. (5 kg); Accessories: 4 lbs. (1.8 kg)

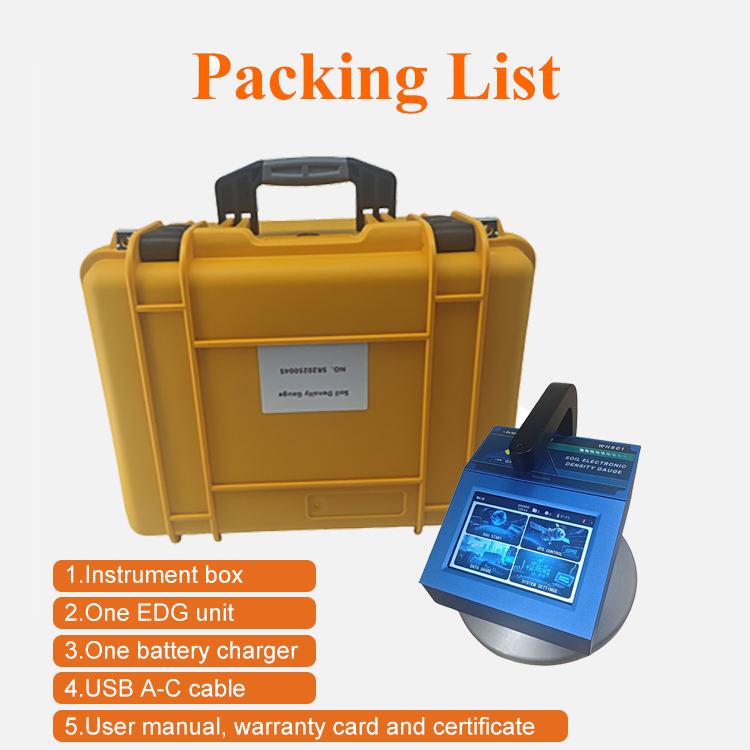

Packing List

The EDG shipment package includes the items listed below. Please contact your dealer if any part missing.

1.Instrument box

2.One non nuclear density meter host

3.One 5V charger

4.One USB A-C data cable

5.Instruction manual, warranty card, certificate of conformity

6.British standard, European standard, American standard, India, South Africa and other charging converters (optional)

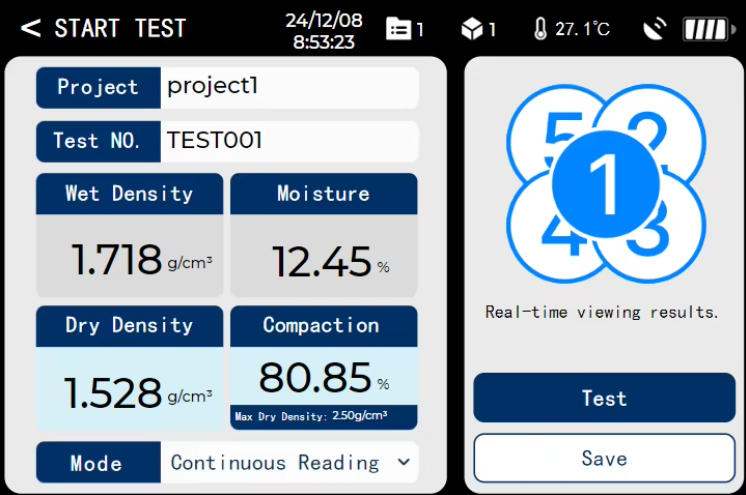

Select a project, and click the button "Start Test", test menu will be show:

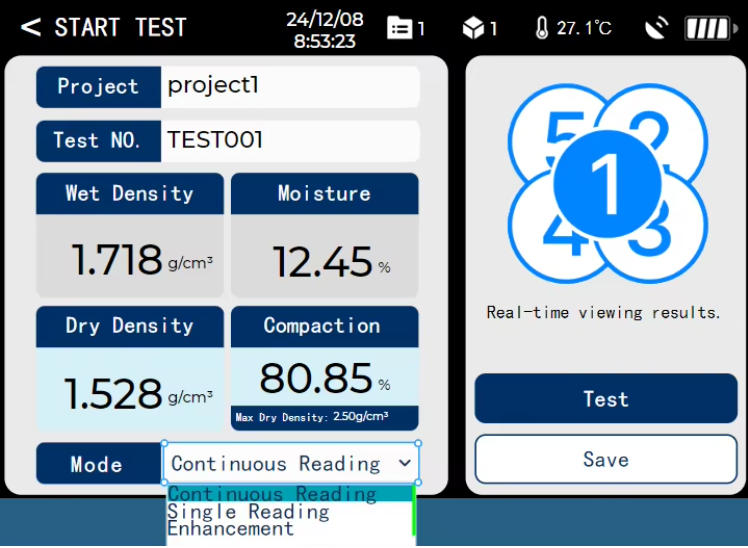

EDG can be used in three different measurement or run modes, respectively:

Continuous Reading Mode

Single Reading Mode

Enhancement Mode
