Product Introduction

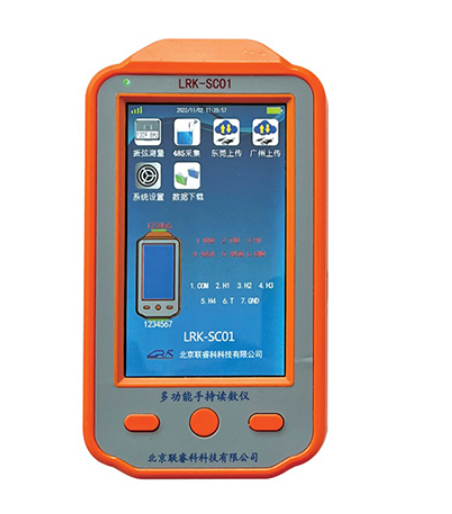

LRK-SC01 handheld reading instrument is a comprehensive reading instrument with the functions of measuring single string and multi string vibrating string sensors, automatic inclinometer, and water level measurement; It has the advantages of portability, low power consumption, and complete reading functions, and can be used for manual reading of various sensors; Mainly used in the fields of foundation pits, high slopes, and structural safety monitoring;
Technical characteristics
Color large screen display, high brightness backlight;
Can measure and read vibration string sensors, temperature sensors, water level sensors, and automatic inclinometers;
Can generate measurement point labels, scan measurement points, and automatically read them;
Built in large capacity storage card, supports USB data export;
Mobile IoT transmission, capable of automatic uploading;
Can be used for installation, debugging, and measurement of automated inclinometers;
| Project | Parameter |
|---|---|
| Display mode | Color page high brightness LCD display |
| Resolution of vibrating wire measurement | 0.01hz |
| Measurement range of vibrating wire | 0-6000hz |
| Measurement accuracy of vibrating wire | 0.1hz |
| Vibration string excitation method | Automatic switching between high-voltage excitation and sweep frequency measurement |
| Power supply mode | Built in lithium battery; DC 5V |
| Read type | Vibration string sensors, temperature sensors, inclinometers, pressure and displacement sensors |
| Operation method | Button operation, automatic measurement by scanning code |
| Interface method | Wire clip or plug type |
| Equipment size | 200mm*120mm*40mm |
